Ericsson MINI-LINK 6363 32 GHz, 6366/4 up to 2,000 Mbit/s incl. AS

Ericsson MINI-LINK 6363 32 GHz, 6366/4 up to 2,000 Mbit/s incl. AS

The Ericsson MINI-LINK 6366 + 6363 is a unique Full Outdoor microwave link. The connection concept consists of two fully outdoor units. The division of the concept into two independent units brings to the customer huge variability, simplicity in case o...More information

Producer

ERICSSON

Code

00069300

Warranty

24 Month

Your price

Price after login

Select a variant

Availability

Availability in stores

Ask for a better price

Ericsson MINI-LINK 6363 32 GHz, 6366/4 up to 2,000 Mbit/s incl. AS - variants

	Count	Name	Code	Description	Availability	Your price exc. VAT	Your price inc. VAT
Partly	1pcs.	Ericsson MINI-LINK 6363 32 GHz, 6366/4, 100 Mbit/s, 30/30cm 00069295 Partly Availability in stores	00069295	The Ericsson MINI-LINK 6366 + 6363 is a unique Full Outdoor microwave link. The connection concept consists of two fully outdoor units. The division of the concept into two independent units brings to the customer huge variability, simplicity in case o...	Partly	Price after login Price after login	Price after login
Partly	1pcs.	Ericsson MINI-LINK 6363 32 GHz, 6366/4, 500 Mbit/s, 30/30cm 00069296 Partly Availability in stores	00069296	The Ericsson MINI-LINK 6366 + 6363 is a unique Full Outdoor microwave link. The connection concept consists of two fully outdoor units. The division of the concept into two independent units brings to the customer huge variability, simplicity in case o...	Partly	Price after login Price after login	Price after login
Partly	1pcs.	Ericsson MINI-LINK 6363 32 GHz, 6366/4, 1000 Mbit/s, 30/30cm 00069297 Partly Availability in stores	00069297	The Ericsson MINI-LINK 6366 + 6363 is a unique Full Outdoor microwave link. The connection concept consists of two fully outdoor units. The division of the concept into two independent units brings to the customer huge variability, simplicity in case o...	Partly	Price after login Price after login	Price after login
Partly	1pcs.	Ericsson MINI-LINK 6363 32 GHz, 6366/4, 1000 Mbit/s, XPIC, 30/30cm 00069298 Partly Availability in stores	00069298	The Ericsson MINI-LINK 6366 + 6363 is a unique Full Outdoor microwave link. The connection concept consists of two fully outdoor units. The division of the concept into two independent units brings to the customer huge variability, simplicity in case o...	Partly	Price after login Price after login	Price after login
Partly	1pcs.	Ericsson MINI-LINK 6363 32 GHz, 6366/4, 2000 Mbit/s, XPIC, 30/30cm 00069299 Partly Availability in stores	00069299	The Ericsson MINI-LINK 6366 + 6363 is a unique Full Outdoor microwave link. The connection concept consists of two fully outdoor units. The division of the concept into two independent units brings to the customer huge variability, simplicity in case o...	Partly	Price after login Price after login	Price after login

More variants Less variants

Ask for a better price

Description

Ericsson Mini-Link 6366 + 6363 is a unique microwave in Full Outdoor.

The joint concept consists of two fully outdoor units. The division of the concept into two independent units brings the customer a huge variability, simplicity in the case of change of bands and simplicity in the case of upgrade (ODU unit is fitted with two modems with XPIC support)

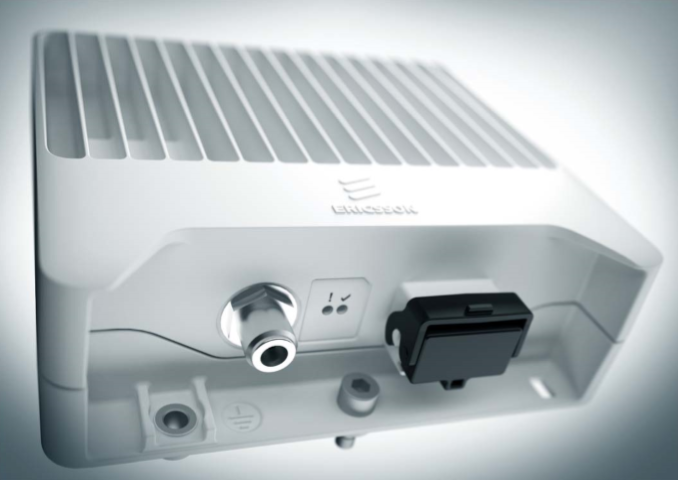

ODU 6363 The outdoor microwave unit is delivered for licensed 6-42 GHz bands and a free band of 10 GHz. Supports channels of 7-112 MHz and modulation up to 4096 QAM.

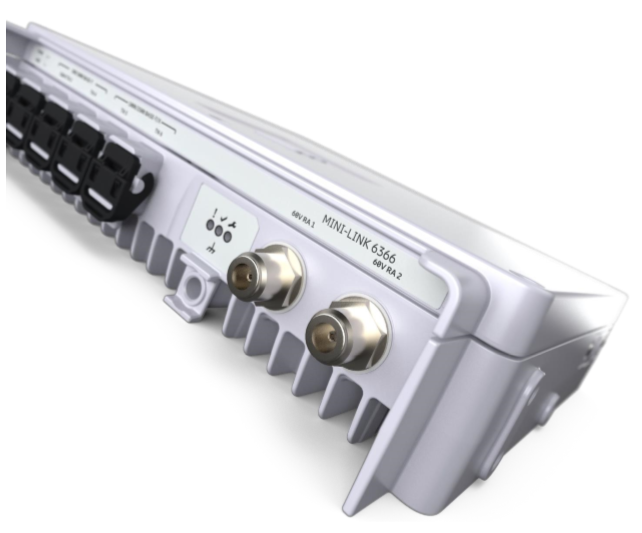

ODU 6366 is an outdoor unit fitted with two modems with the support of the XPIC function, which ensures simultaneous operation of two microwave units at the same frequency (in opposite polarizations). As a result, it significantly saves the cost of channel from CTU
The unit contains a powerful integrated switch with GETH support.

In the 1+0 concept, the capacity of up to 1,000 Mbit/s reaches. (2x ODU 6363, 2x ODU 6366, single polarizing antenna)

The 2+0 concept reaches the capacity of up to 2,000 Mbit/s. (4x ODU 6363, 2x ODU 6366, dual polarizing antenna with polarizing switch)

Ericsson mini-link technology is proven by installations in more than 100 countries. Ericsson is the world's largest manufacturer of MW connections, and the Mini-Link series, which is used by the largest Telco operators, has become a standard of quality in this field.

Technical parameters:

band 6-42 GHz (according to HW variant ODU 6363)

transmission capacity: 1+0 to 1.000 Mbit/s or xpic 2+0 to 2.000 Mbit/s

channel width up to 112 MHz

modulation up to 4096 qam

TX Power up to +30 dBm (according to HW variant ODU 6363)

2x10/100/1000 Base-T IEEE802.3 TRAFFIC INTERFACES

Optical GBE VIA 1000/2500 BASE-SX/LX/ZX IEEE802.3

Switching

Customer and Provider Bridge

IEEE 802.1Q-20111, IEEE 802.1W RSTP, IEEE 802.1AX LAG/LACP

Bandwidth Notification (G.8013)

operating temperature-33 ° C to +55 ° C

Typical Consumption: 54-65 W (1+0 Configuration) or 74-96 W (2+0 Configuration)

Power 48 VDC power

ACM, ATPC

L3 VPN, VRF, OSPF, IS-IS, EBGP, MPLS OAM, RSVP-TE, SYNC E, 1588V2 (Telecom Profile G.8275.1), NTP Transparent, Supported by IP Transport NMS, Serviceon, Craft and Cli? SNMP V3

antenna system 0.3/0.6/0.9/1.2 m

Parameters

Ethernet parameters
ACM - hitless	Yes
ATPC	Yes
Band	Licensing
Concept	Full-Outdoor
Consumption	54-65 W (1+0) nebo 74-96 W (2+0)
DC power supply	Yes
FEC	Yes
Channel Width	až 112
Jumbo frameworks	Yes
Max. guaranteed capacity (Mbit/s)	2000
Max. transmitting power (dBm)	30
Metallic port	Yes
Modulation	až 4096 QAM
Optical port	Yes
Port E1	No
Possibility of closing SLA	Yes
Possibility to rent equipment	Yes
Power Supply	DC
Power Supply PoE	No
Required capacity (Mbit/s)	min. 50, min. 100, min. 200, min. 300, min. 400, min. 500, min. 1000, min. 2000
SNMP	Yes
XPIC	Yes
Port speed (Gbps)	2,5 Gbps
Wireless parameters
Frequency	32 GHz
