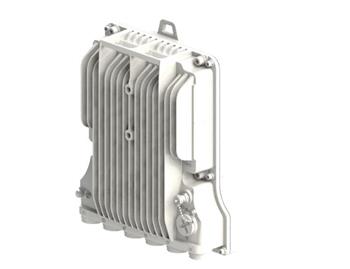

Ceragon IP-50E 80 GHz, up to 10 Gbit/s

The IP-50E connection is a compact high-capacity Full Outdoor microwave connection with the capacity of up to 10 Gbps and is fitted with SFP+ 10G interface slot.

Connections in the 80 GHz band have been an ideal investment in recent years to ensure protection against interference due to the notification duty on the CTU and the physical properties of the antenna diagram, which has a very narrow radiation lobe. In addition, the protection of investment is ensured by a huge moral life in terms of capacity.

The connection is operated on the basis of general permissions (vo-r/23)

The range of the connection is thanks to ATPC (automatic power control, FW 11.7.), Lossless ACMB (automatic modulation and bandwidth), high radiation power and very good sensitivity in the order of kilometers. The exact distance depends on the desired capacity, selected antennas, entitlement to availability and capacity requirements. We will be happy to prepare the route design and detailed availability calculation.

ACMB modulation diagram under deterioration of climatic conditions, modulation will be reduced, and the bandwidth


Main benefits of technology:

high transmission capacity

Optical route parameters with minimal latency

minimal risk of interference

free zone without having to pay CTU fees

The quality of the design and guarantee of the world manufacturer MW connections

properties:

band 71-76 /81-86 GHz

high transmission capacity up to 10 gbit/s

Canal width 250, 500, 750, 1000, 1200, 1500, 1750, 2000 MHz

BPSK-512 QAM modulation

Max. TX POWER 18 dBM

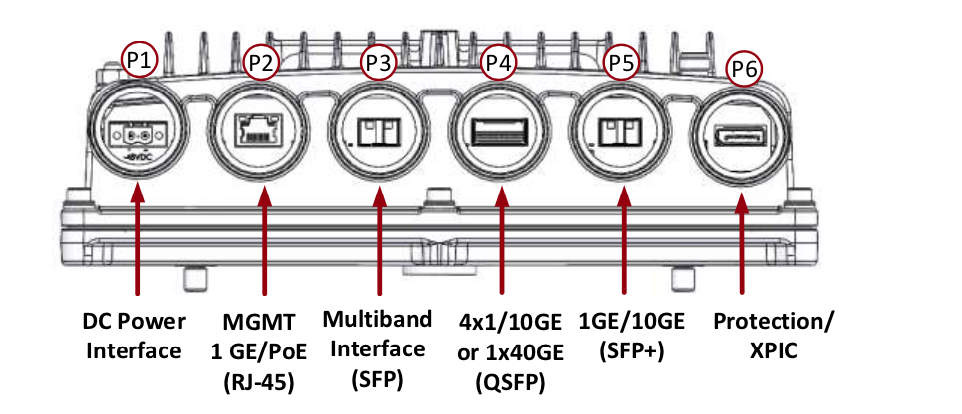

interface SFP/SFP+/QSFP

Typical consumption <58 W

power 48 VDC or POE

ACMB, ATPC (from FW 11.7)

Instructional video for configuration:
