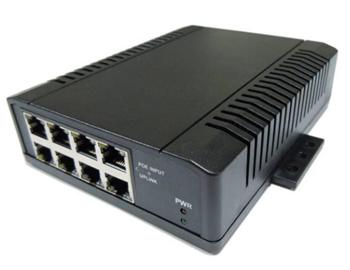

Unpacked: Tycon System TP-SW8-D, PoE switch 8x port, 48V, 2A/port

Tycon Power Systems TP-SW8-D is an industrial switch powered by DC voltage in the range of 48-56 VDC. Switch has 8x 10/100 Mbps ports. POE is solved according to the 802.3 AF/AT standard. The wide temperature range allows deployment even in demanding temperature conditions. IN...More information

Producer

TYCON Power

Part No.

TP-SW8-D

Code

00074998

Warranty

24 Month

Availability

Availability in stores

Order

Your price exc. VAT

40.77 EUR exc. VAT

VAT

21%

Your price inc. VAT

49.33 EUR inc. VAT

Ask for a better price

Description

Tycon Power Systems TP-SW8-D is an industrial switch powered by DC voltage in the range of 48-56 VDC. Switch has 8x 10/100 Mbps ports. POE is solved according to the 802.3 AF/AT standard. The wide temperature range allows deployment even in demanding temperature conditions.

properties:

High Power 10/100 PoE Switch
remote power supply via Ethernet cable to more than 100 m
Integrated Surgery Protection
Automatic MDI/MDI-X Crossover
1k Self Learning Mac Address Table
compact size
Operation even under demanding temperature conditions
CE and FCC certification

Specifications:
Ethernet Standard:	IEEE802.3/IEEE802.3U
Number of ports:	1x Data/Poe-in and 7x Data/PoE-Out, Automatic Crossover and Polarity
Better speed:	10 Mbps /100 Mbps Auto-Negotiac
Data transfer speed:	148800PPS, 14880pps
Address Table:	1K MAC, self-learning
Connection:	shielded RJ45
Output PoE ports:	Port 1-7, Auto Power Management Pin Assignment: TX (1,2), RX (3,6), V+(4,5), V-(7,8)
POE Protection:	Against overheating/against overvoltage/upstream
Survey protection:	IEC61000-4-2 (ESD) ± 15kV (Air), ± 8kV (Contact) IEC61000-4-4 (EFT) 40A (5 /50ns) IEC61000-4-5 (Lightning) 20A (8/20µs)
LED LEDs:	LINK (Green) Activity (flashing green) Detected POE (yellow) Power error (blinking yellow) Power OK (Green) Alarm/Error Power (Red)
DC input:	48-56VDC, DUAL DC INPUT, protection against opposite connection
Operating temperature:	-40 ° C to 85 ° C
Dimensions:	159 x 116 x 40 mm
Weight:	450 g
