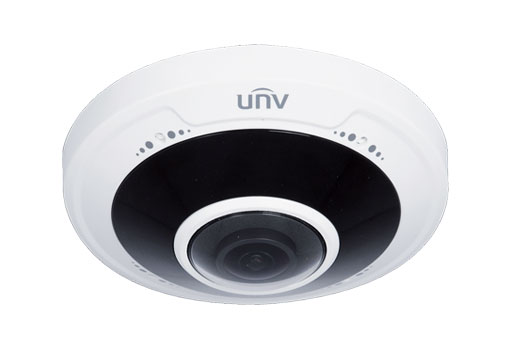

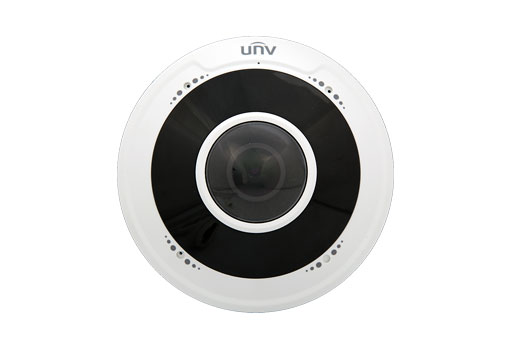

Uniview IPC815SB-ADF14K-I0, IP camera
Compare Set Watchdog

Uniview IPC815SB-ADF14K-I0, IP camera

Outdoor IP camera with a resolution of 2560*1944 at 25 frames per second and a fixed lens with a focus of 1.4 mm (180 °).More information

Producer
  Uniview

Part No.


IPC815SB-ADF14K-I0


Code
 00071985
Warranty
24 Month
Order

Your price
Price after login


    Ask for a better price

    Your e-mail
    Phone
    Quantity
    Comment

    Description

    />
    depending on location, the camera offers up to 11 display modes. In addition, it is equipped with True WDR 120DB , 3D noise digital reduction and intelligent IR illumination with an efficient range of up to 10 meters , providing a great picture in both night and high-contrast scenes and reliably ensuring high quality video. The camera has a fixed lens with a focus of 1.4 mm (180 °). Optical glass ensures better light transmission into the lens and brings a brighter image. The camera is also equipped with built-in two microphones with a range of up to 25 m suitable for internal applications and overvoltage protection of 4 kv.

    Compression technologies H.265 together with intelligent streaming and the possibility to target resolution to the desired area (ROI) allows a significant reduction in data flow and storage capacity requirements while maintaining excellent image quality. The resistance and functionality of the camera in demanding outdoor conditions with a wide range of operating temperature (-30 ° C to 60 ° C) ensures a robust cover in the IP66 standard.

    Parameters

    Angle of shot (°) 180
    Antivandal Yes
    Audio IN Yes
    Audio OUT Yes
    FPS 30
    Integrated microphone Yes
    IR illumination afterglow (m) 10
    Lens focal length (mm) 1.4
    MicroSD support Yes
    Minimum light for colors (lx) 0.01
    ONVIF support Yes
    Perform of Camera Fisheye
    Power consumption (W) 8.5
    Power Supply PoE, DC
    Resolutin (Mpx) 5
    Special Features Motion Detection
    Type of Lens Fixed
    WDR Yes, 120 dB WDR

    Ethernet parameters

    Network interface (Mbps) 10/100

    Physical parameters

    Design Outdoor
    Height (mm) 43.7
    Weight (kg) 0.36
    Width (mm) 125
