Tycon System TP-VRHP-2456, converter with PoE 24V DC/56V DC, 70W

The DC/DC series Tycon TP-VRHP inverters offers a high output voltage conversion in a compact metal case. The TP-VRHP-2456 converts the input voltage of 18-36 VDC to the output 56 VDC with maximum load power up to 70 W. The inverters have removable PR connectors ...More information

Producer

TYCON Power

Part No.

TP-VRHP-2456

Code

00071219

Warranty

24 Month

Availability

Availability in stores

Order

Your price exc. VAT

166.65 EUR exc. VAT

VAT

21%

Your price inc. VAT

201.64 EUR inc. VAT

Ask for a better price

Description

The DC/DC series Tycon TP-VRHP inverters offers a high output voltage conversion in a compact metal case. The TP-VRHP-2456 converts the input voltage 18-36 VDC to the output 56 VDC with maximum load up to 70 W . The converters have removable connectors for maximum flexibility and are supplied with adapters for mounting on the DIN bar.

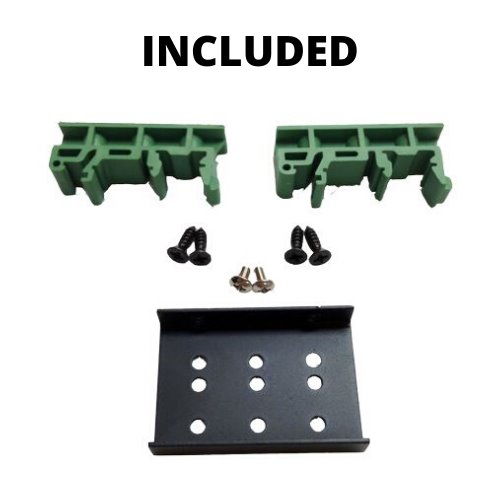

Package content: inverter, accessories for attaching to the DIN bar

Parameters

Ethernet parameters
DC Output Voltage (V)	56
Input Voltage (V)	24
Insulation strength	15 kV
Local signalling	LED
Ochrana proti podpětí	Ne
Ochrana proti přepětí	Ano
Ochrana proti zkratu	Ano
Output Current (A)	1.25
Output Power (W)	70
Remote signalling	Ne
Network interface (Mbps)	10/100
Physical parameters
Depth (mm)	133
Design	DIN rail
Efficiency (%)	85
Height (mm)	38
Operating Temperature	-30° až +65°C
Weight (kg)	0.298
Width (mm)	75
