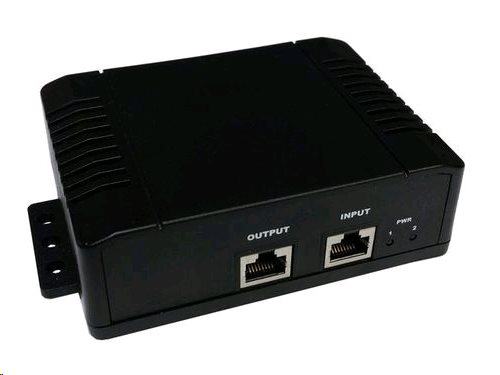

Tycon System TP-DCDC-1256GD-VHP, PoE injector 802.3at, 70W

; Input voltage +/-10-60VDC-Output 56V ; integrated Gigabit PoE ; short circuit fuse, overload protection and overvoltage ; High heat resistance-60 ° C ; Removable cable connector ; ; Gigabit injectors TP-DCDC-1256G-VHP and GD-VHP are a v...More information

Producer

TYCON Power

Part No.

TP-DCDC-1256GD-VHP

Code

00033660

Warranty

24 Month

Availability

Availability in stores

Order

Your price exc. VAT

243.32 EUR exc. VAT

VAT

21%

Your price inc. VAT

294.41 EUR inc. VAT

Ask for a better price

Description

Gigabit injector TP-DCDC-1256G-VHP is a very special combination of DC converter and POE injector and is designed for powered demanding applications with passive POE. The inverter has two powered outputs 802.3AT, for example, for PTZ cameras, etc. and the Ubiquiti Airfiber also suits. The output voltage is 56 V and the power supply takes place on all 4 pair of wires with a total power up to 70 W .

The input power range 10-60V DC allows you to use different battery systems for power. The unit has a mutual insulated input and the output to work with different grounded poles. The units have two power inputs-primary and backup. The unit is equipped with device protection-short-circuit and overvoltage.

Package Contents: Injector ,, assembly holders for DIN bar

Parameters

Ethernet parameters
DC Output Voltage (V)	56
Input Voltage (V)	56
Ochrana proti přepětí	Ano
Ochrana proti zkratu	Ano
Output Power (W)	70
Network interface (Mbps)	10/100/1000
Physical parameters
Depth (mm)	76
Design	DIN rail
Height (mm)	36
Weight (kg)	0.134
Width (mm)	85
PoE parameters
PoE standard	802.3af
Powering
Typ zdroje	PoE
