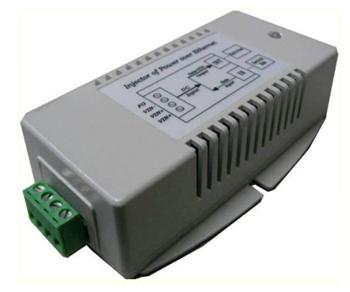

Tycon System TP-DCDC-1248G-HP, inverter with PoE, 12V DC/48V DC, 50W

Tycon TP-DCDC-1248GD-HP is HP voltage converter with passive POE output port. Input voltage 10-15VDC is regulated at 56V/0.625A. The source has two insulated inputs for redundant power supply.More information

Producer

TYCON Power

Part No.

TP-DCDC-1248G-HP

Code

00034229

Warranty

24 Month

Availability

Availability in stores

Order

Your price exc. VAT

88.16 EUR exc. VAT

VAT

21%

Your price inc. VAT

106.67 EUR inc. VAT

Ask for a better price

Description

Tycon TP-DCDC-1248G-HP is an HP voltage converter with PoE port with passive power supply. The input voltage 10 - 15VDC is regulated to 56V/50W. The source has two isolated inputs for redundant power supply.

Usage:

12V battery systems

Wireless access points and client stations

Security cameras, IP phones

Parameters

Ethernet parameters
DC Output Voltage (V)	56
Input Voltage (V)	12
Local signalling	LED
Ochrana proti podpětí	Ne
Ochrana proti přepětí	Ano
Ochrana proti zkratu	Ano
Output Current (A)	0.9
Output Power (W)	50
Remote signalling	Ne
Network interface (Mbps)	10/100/1000, 1000
Physical parameters
Depth (mm)	125
Design	Standalone
Efficiency (%)	75
Height (mm)	38
Operating Temperature	-40° až +70°C
Weight (kg)	0.3
Width (mm)	75
PoE parameters
Number of PoE ports	1
PoE standard	Pasivní
Powering
PoE	Yes
Typ zdroje	PoE
