Stock sale: Racom RAy 10 GHz, incl. 38 cm antennas, 170 Mbps Full-Duplex, 1x Gb Ethernet

Video



This text will be replaced

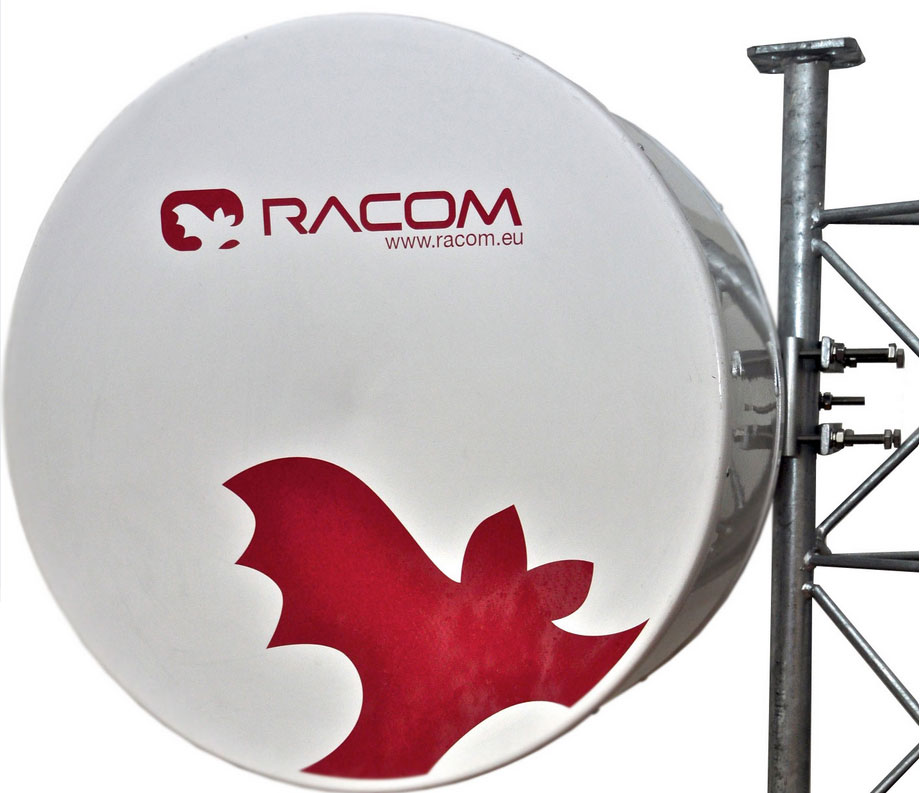

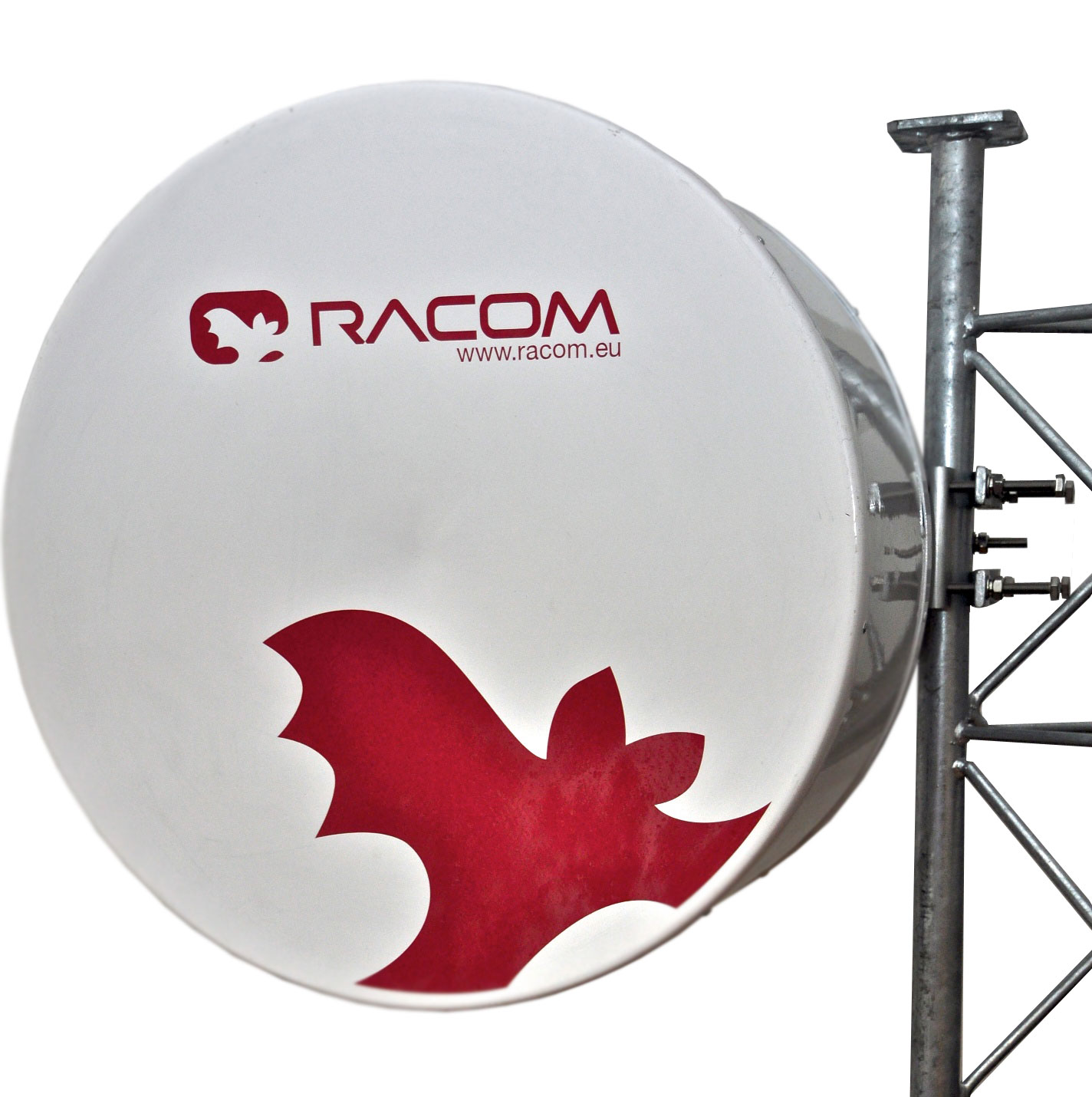

The Racom Ray 10 GHz is based on high-speed microwave point-to-point bridge with 170 Mbps full duplex. The connection has an over-standard feature of adaptive modulation (ACM),   which will allow in the case of impaired transmission conditions temporarily switch tosimpler modulation without hitless packet. This will allow you to connect further transfer data, temporarily at the expense of capacity even in a situation where the link would otherwise he disintegrated or started to err. Part of the connection is also good 38 cm antennas and Gigabit Ethernet interface. Ray 10GHz includes one radio unit for the low band and the other for the high band. The link is tunable over the 10 GHz band (Channels 1-4 and 7-10 by VO). Joint uses FDD transmission at a recommended 168 MHz duplex spacing and widthChannel 28/14/MHz. The outdoor units have 1 Gigabit Ethernet port Ethernet (PoE) power supply and 1 service port for antenna directions. The 5-year warranty is provided for the connection! &Nbsp;

For long jumps, you need to use more profitable antennas of larger diameters. Supplements to alternative antennas for the cost of the connection are:

• Antenna 60cm: 990,-
• Antenna 90cm: 5.900,-



We also offer the possibility of complete installation, including additional services, according to customer's requirements. contact us! < /b>


Speed:

• Modulation speed 200 Mbps, user speed 170 Mbps for 256 QAM
• SW Modulation Settings: QPSK, 16, 32, 64, 128, 256 QAM
• ACM (Adaptive Coding and Modulation)
•

  Reliability:

  • Made exclusively from military or industrial applications
  • Surge and electrostatic protection
  • Certification-30 ° C to + 55 ° C
  • Each piece tested and burned in the climatic chamber even in real-life operation
  • Extraordinary reliability of your own communication: high sensitivity of the receiver
  • -87 dBm/41Mbps/QPSK/28MHz
  • -67 dBm/170Mbps/256QAM/28MHz
  • -96 dBm/8.45Mbps/QPSK/7MHz
  • Extreme immunity against radio interference
  • LDPC (Low-Density Parity-Check) coding (FEC)

    Simplicity:

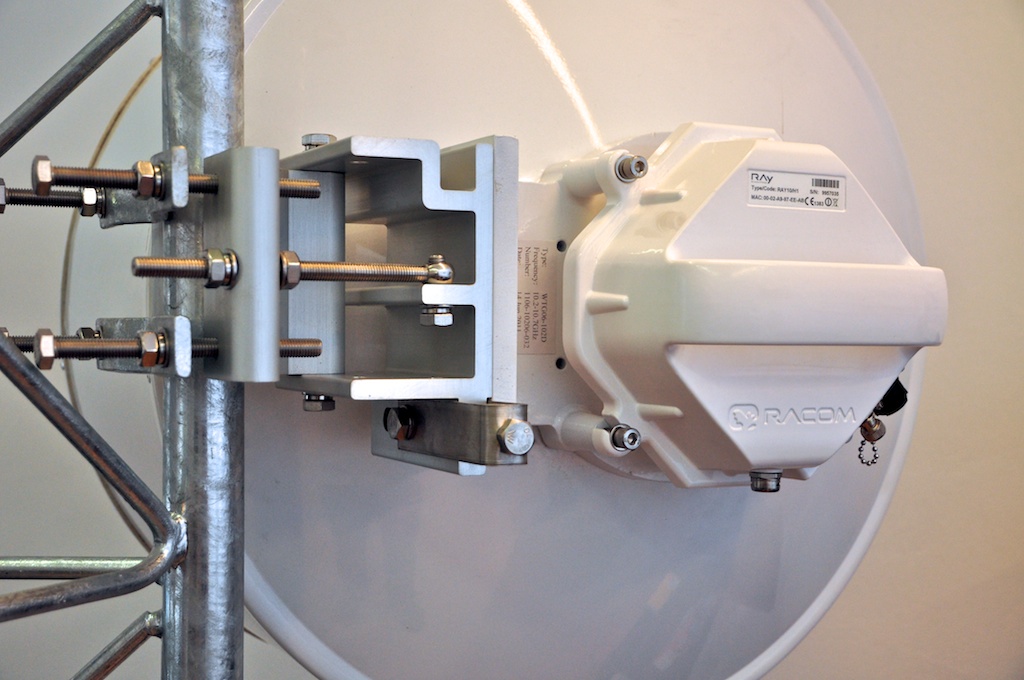

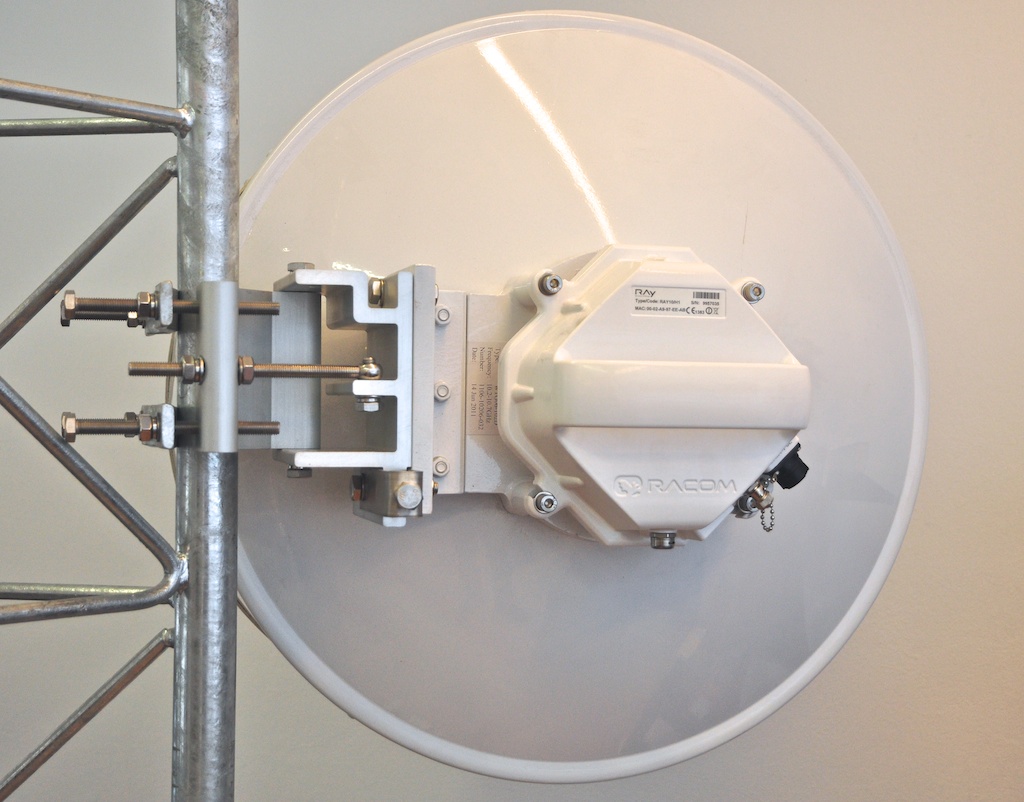

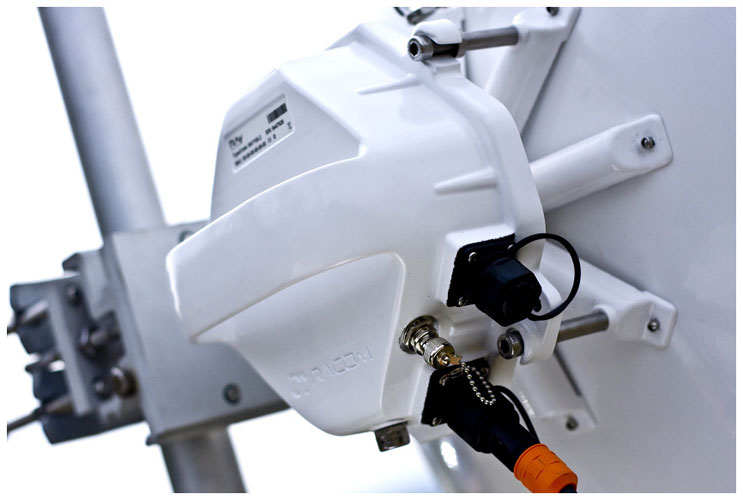

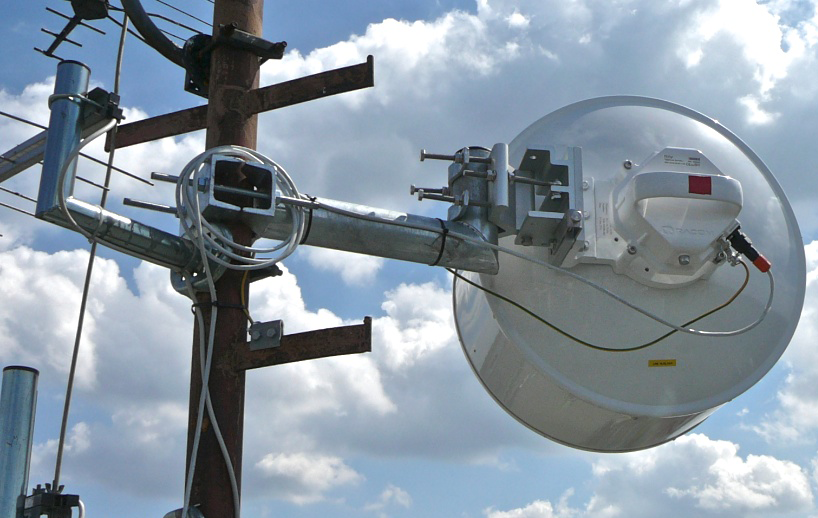

    • FOD (Full Outdoor), Al alloy casting, direct mounting on the antenna
    • Change polarization by turning by 90 ° (4 fastening screws enabled)

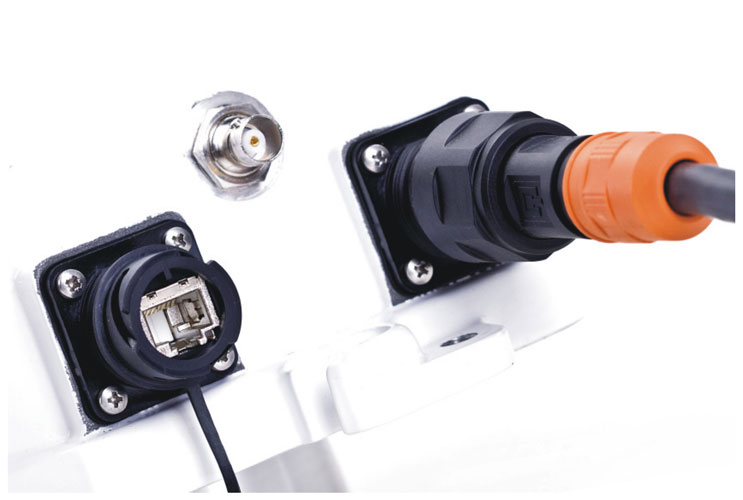

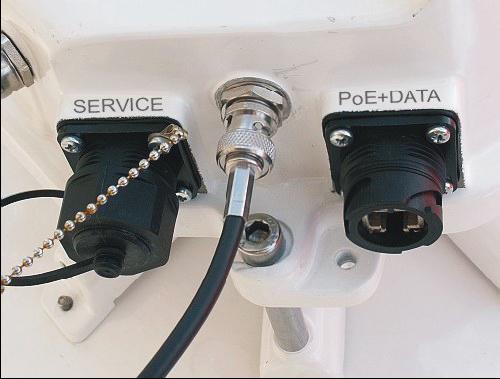

    • Acoustic signaling of antenna tuning (+ analog voltage on BNC connector)
    • Complete installation and setting in minutes


    • Unreservedly, all relevant European and Czech standards are also met for 170 Mbps
    • Confirmed by measuring all parameters in TESTCOM Prague certified laboratory


    • Configure via HTTPS, SSH
    • When verifying real-time communication with a specified serial number
    • Theft protection: Unique SSH key for each serial number

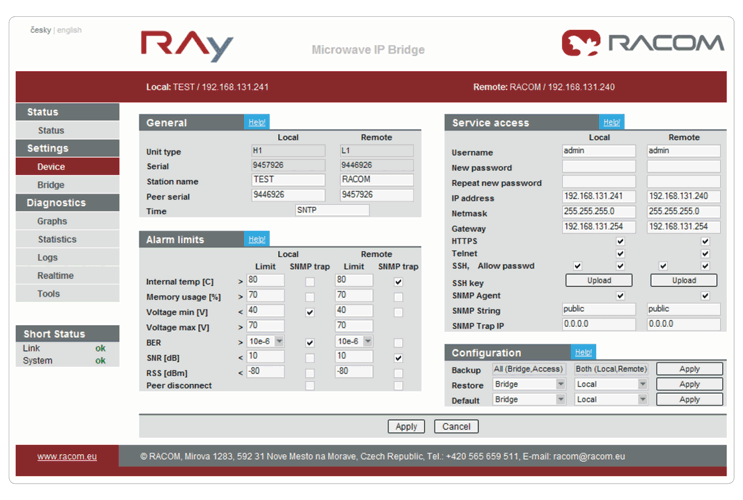

    • www interface
    • Graphs history of temperature, power, RSS, SNR, BER, speed
    • SNMP, including generating TRAP when the set thresholds are exceeded
    • Built-in spectral analyzer to find a free channel
    • Automatic detection of the polarization set
    • Constellation diagram of the received signal

      • Ungrounded input filter
      • Full SW retractability including a combination of channels 4, 7 at full speed, sensitivity and durability
      • Option with the other Eth. port (physically separate for service access"out-of-band" supervision)
      • Direct mounting on various manufacturers' antennas including flexible waveguide



      Detailed product charteristics:

      • Frequency band: 10.3 10.6 GHz
      • Rollover: The top of the spectrum (center frequencies 10.4795 -10.5845 GHz), channels 7-10, bottom of the spectrum (center frequencies10,3115-10,4160 GHz), Channels 1-4 according to VO-R/14/12.2006-38 CTO
      • Channel Width: 7; 14 and 28 MHz
      • Full-Duplex transmission
      • Modulation: QPSK/16QAM/32QAM/64QAM/128QAM/256QAM, ACM
      • Latency: 140 us for 170 Mbps
      • Interface: 1x GB Ethernet port
      • Adaptive Modulation + ATPC
      • Connections to Direct Visibility
      • Range: According to used antennas up to 70km (antenna system 2x 120cm, modulation QPSK 50Mbit)



      Work Frequencies, Band:

      • Transmitting frequencies: RAY10H1: Top of the spectrum (center frequencies 10.4795-10.5845 GHz), channels 7-10 according to VO-R/14/12.2006-38 CTO /unit RAY10L1: lower part of the spectrum (center frequencies 10,3115 -10,4160 GHz), Channels 1-4 according to VO-R/14/12.2006-38 CTO

      Sensitivity (BER10-6):

      • -89 dBm/QPSK,-82 dBm/16QAM,-78 dBm/32QAM,-75 dBm/64QAM,-72 dBm/128QAM, /ul>


        Supported standards:

        • Radio parameters: ETSI EN 302 217-2-2 V1.3.1 (2009-04), ACCP/CCDP limits
