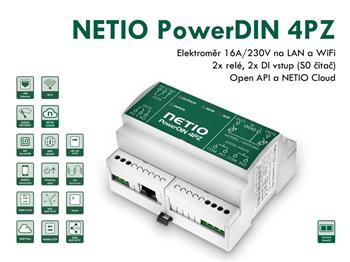

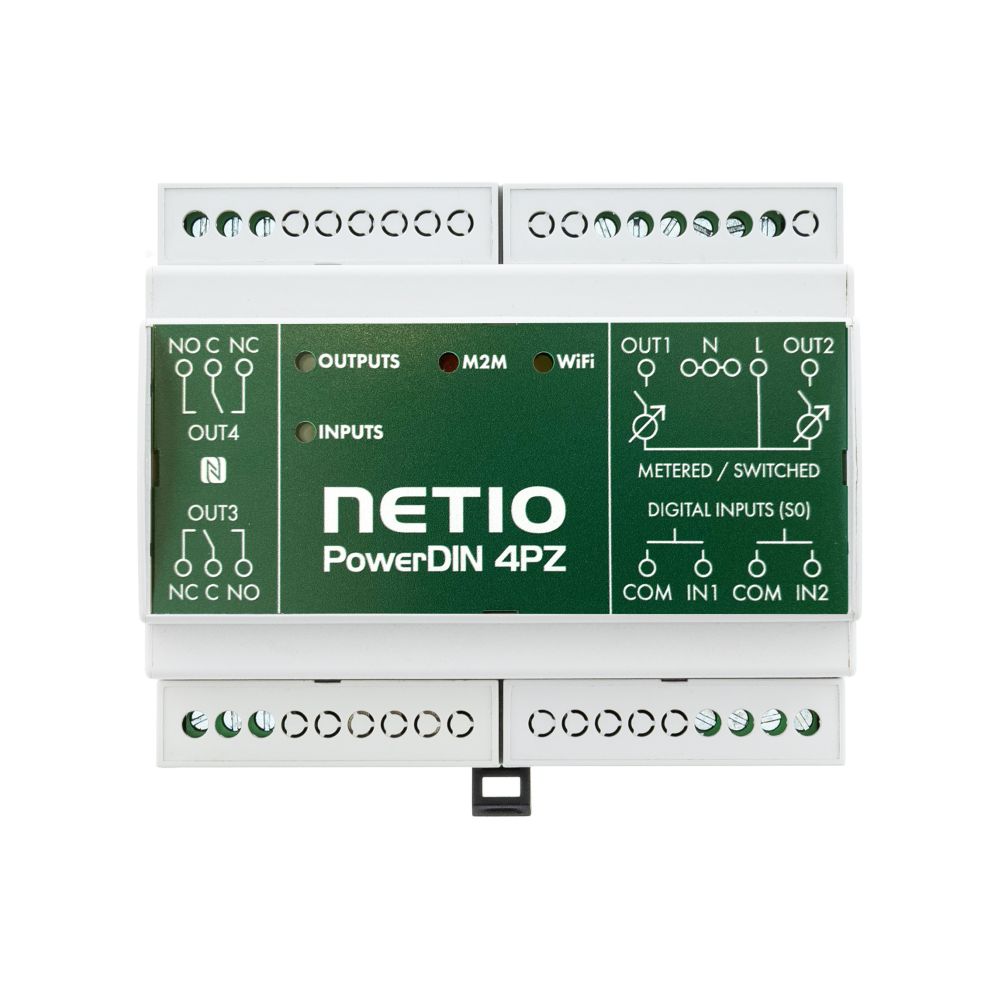

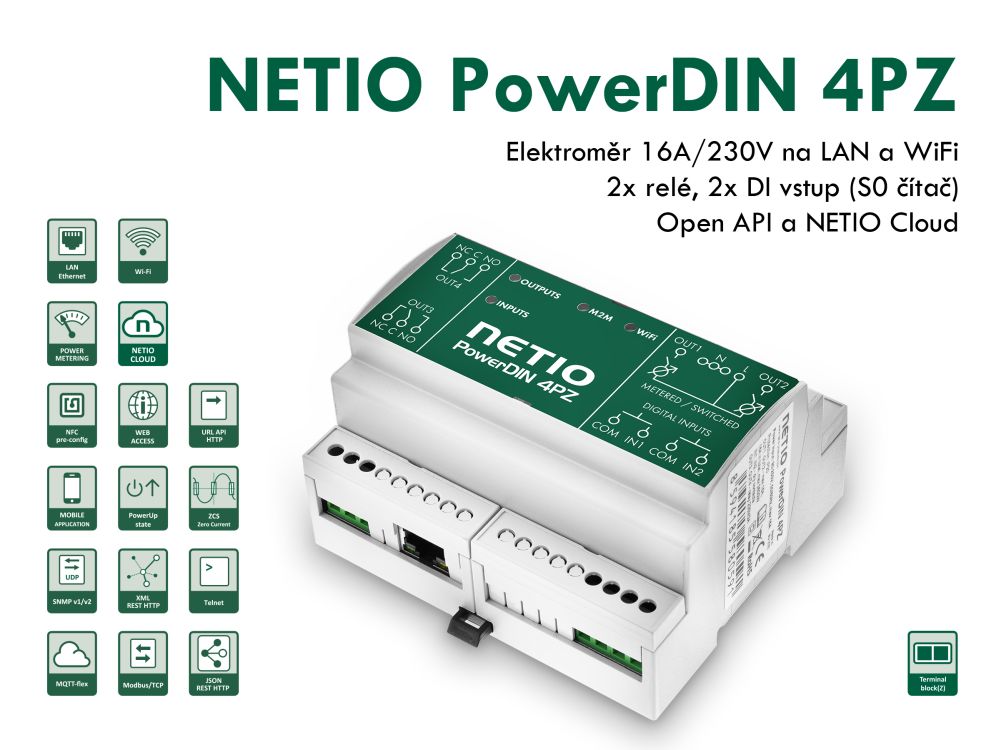

Smart electricity meter NETIO PowerDIN 4PZ

PowerDin 4PZ is LAN/WIFI double electricity meter 230V/16A S I/O for mounting on DIN bar. Each of the four outputs can be operated using a web interface and netio cloud from virtually anywhere. Thanks to the M2m support , it is not a problem with integrating into existing systems. The product is also designed in the Czech Republic.

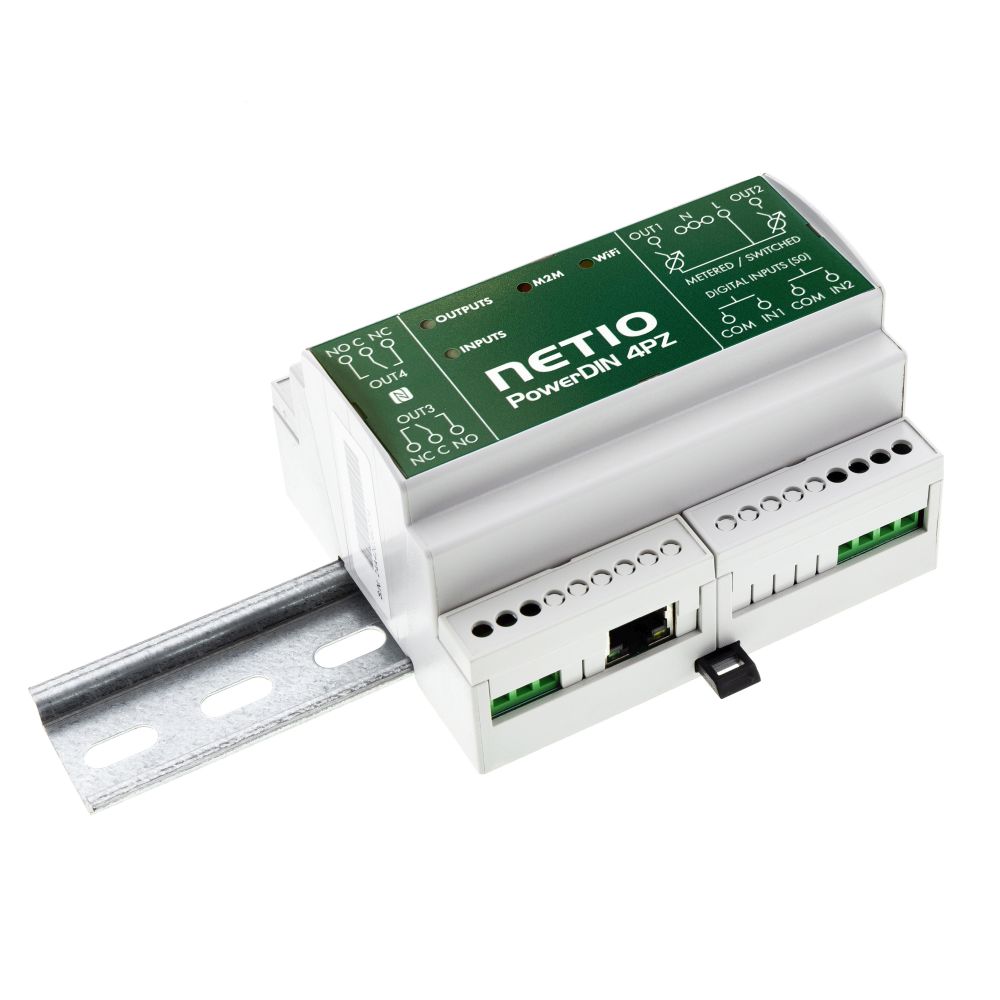

The device can be conveniently placed directly in electric DIN switchboard (6 modules). The materials used and temperature ranges predetermine for use in industries.

We can not only control the connected devices with a smart meter, but to accurately measure their electricity consumption at the first and second outputs with a deviation of less than 1 #i6per #. The following quantities are measurable:

current[A]

Power[W]

energy[WH]-user resetable counter

energy out[WH]-MID Energy Counter taken from el. net

Energy in[WH]-MID Energy Counter supplied to el. network.

TPF (True Power Factor)

phase shift[-180 ... 180 °]

voltage[v]

Frequency of power network[Hz]

Digital inputs In1, IN2 can be used for free contact and, via Open API, detect their condition or deduct the status of the S0 counters at each input and measure, for example, instant consumption on an external water meter or meter.

The unique feature of the PowerDin 4PZ is the zcs (Zero Current Switching) switching and expansion of the first and second output at Passage of the current . This reduces EMC interference, precedes problems and protects the controlled device in the long term. A delayed gradual fastening of electrical appliances after power recovery with the"power-up state" parameter \u003d ON/LAST and the"Output PowerUP interval" \u003d delay time on this specific output after power is used.

For convenient operation, a web interface for local approach is ready. For remote access, it is possible to use the Netio Cloud and access the device from anywhere in the world-servers have SSL security and are located in Europe. The cloud is a paid service, but as part of the purchase of a new device, the test version is made available. Of course there is also mobile app for Android .
Online web interface can be tested at http://powerdin-4pz.netio-products.com .



Another control option is to use one of the m2m protocols and integration into the 3 pages system. This API is available:

Modbus/TCP

MQTT-FLEX

telnet

http URL API

http json

http xml

SNMP V1/V2/V3

The product is connected via Ethernet port and LAN network or via built-in wifi -for fast WiFi configuration with a mobile phone can be used nfc .

Each output can be automated regularly by time and day of the week thanks to Scheduler .

parameters:

name	value
LAN (RJ45):	Yes
wifi:	Yes
Web:	Built-in Web Server
Control button:	Yes (under the panel)
Power input:	terminals (O 2,5mm) 100-240V AC/MAX 16A
Power output:	terminals (O 2,5mm)
measured outputs:	2 channels
to (digital outputs):	4
to measured power outputs + switching element:	2x relay + ZCS (out 1,2: SPST-NO)-max 230V/16A
to relay outputs:	2x relay (out 3.4: no/nc)-max 2a
di (digital inputs):	2x input (contact) + S0 counter (4 apartments)
Custom Consumption of Device:	MAX 2 W
SPD-Surgery Protection:	Yes, type 3

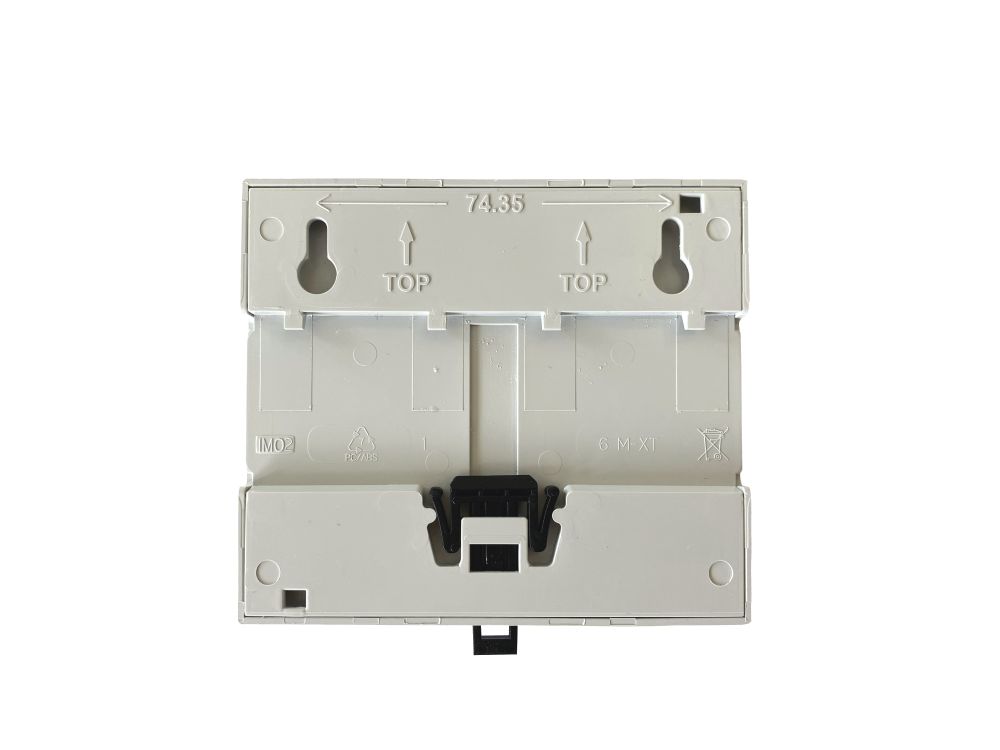

Mechanical parameters:	106 x 91 x 62 mm-6m (SU) DIN
degree of coverage:	IP20
Temperature range:	-20 ° C to +55 ° C

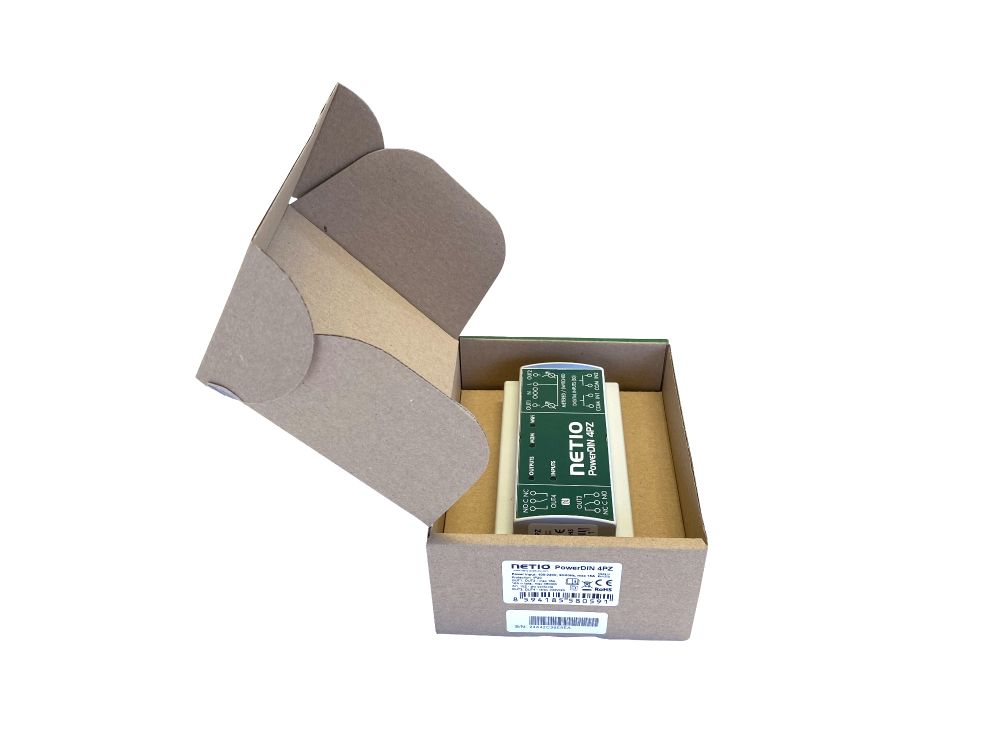

Package content:

Netio PowerDin 4PZ

qig (printed installation wizard)
