Product is discard!
Product is never more offered.
Contact product manager please: Ing. David Němec, nemec@vanco.cz

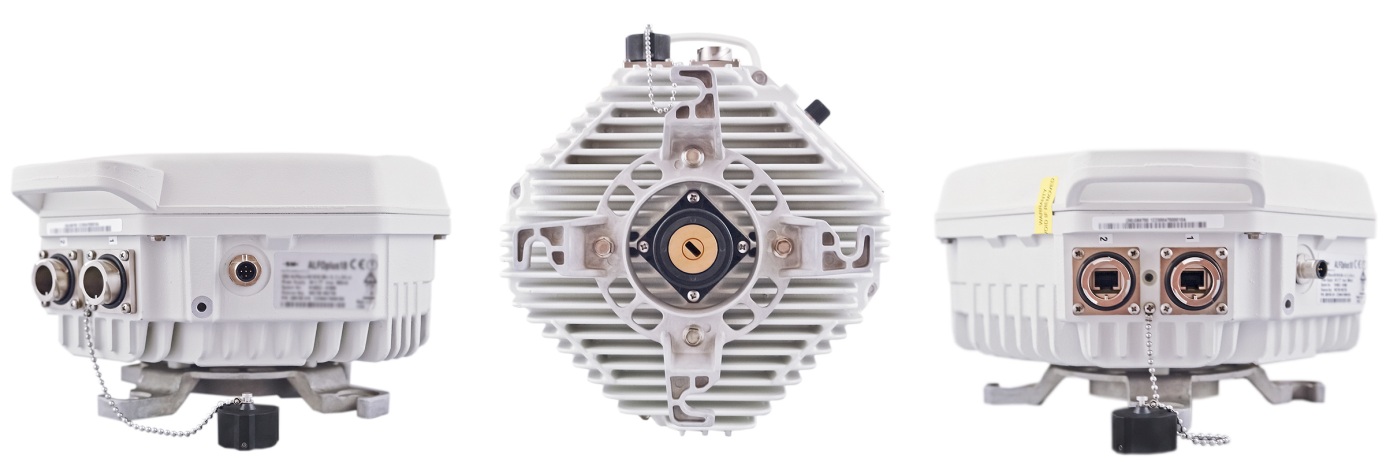

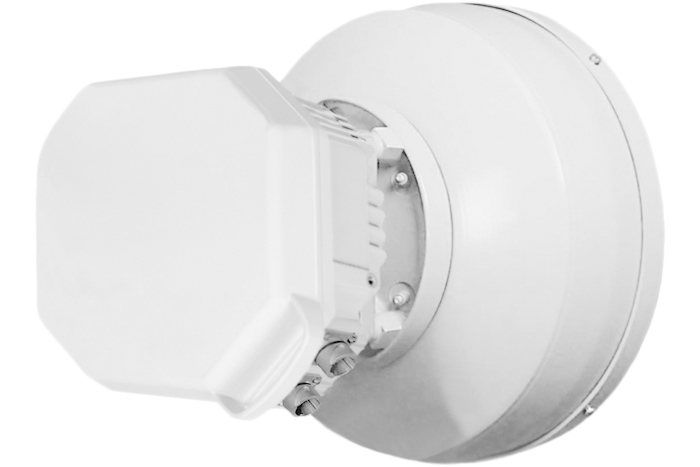

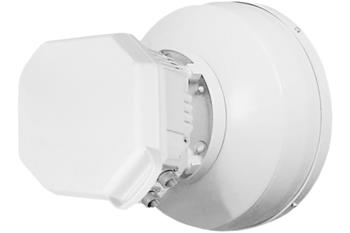

SIAE ALFOplus link, up to 500M, AM, 18 GHz, 0.6m ant.
SIAE ALFOplus is a Full Outdoor microwave link, available in the 7 - 80 GHz bands. Technology that contains many unique features is manufactured by SIAE Microelettronica, which has more than 60 years of experience in the development and production of r...More information
SIAE ALFOplus link, up to 500M, AM, 18 GHz, 0.6m ant. - variants
| Count | Name | Code | Description | |||
|---|---|---|---|---|---|---|
|
1pcs. |
Connection SIAE ALFOplus, 500M, AM, 18 GHz, 0.6m ant.
00020024
|
00020024 | SIAE ALFOplus is a Full Outdoor microwave link, available in the 7 - 80 GHz bands. Technology that contains many unique features is manufactured by SIAE Microelettronica, which has more than 60 years of experience in the development and production of r... |
|
Ask for a better price
Products classification
Product question
Product question
Do you need help?
We will help you with product selection or technical problems.
Ing. David Němec
Product managerDownloads3
Related products14
Related products
SFP 1,25Gbps, LC dup., 10km, SM, 1310nm, -40 - 85°C, Cisco
s vlnovou délkou TX:1310, pro teplotní rozsah -40 až 85°C, Cisco kompatibilní
exc. VAT
inc. VAT
Tycon System TP-POE-HP-48G, High Power Gigabit PoE source, 56V/1A
Tycon TP-POE-HP-48G is a gigabit power supply/poE inserter that supports up to 50W DC PoE output and is designed to power high-volume devices. This source supports power on pins 4.5 (V +) and 7.8 (-). ; ; Properties: ; Powering the device...
exc. VAT
inc. VAT
IMCO POWER VAN01 PoE, network power supply, 55V/0.9A, 50W
Mesh power supply 85-265V ~ 50Hz/48V (1A) in design with uchytt on DIN bar. Power supply POE 1 GBPS with optional power conductor.
exc. VAT
inc. VAT
SFP 1,25 Gbps LX, LC dup., 10km, SM, 1310nm, DDM,-40-85 ° C, SIAE
Optical transceivers (optical modules) are standardized devices/plug-in media converters for use in third-party products. RX wavelength:
exc. VAT
inc. VAT
Dual power supply line 2x1.5mm H07RN-F, UV resistant
Rated voltage: 450/750 V; Test voltage: 2.5 kv; Cross-section (x-y mm2): 1.5; Core: lated bare cu core; Core insulation: elastomer insulating mixture; External sheath: elastomer mantle mixture; Resistance: UV radiation at the version in black
exc. VAT
inc. VAT
ADEL System FLEX17048A, Industrial power supply, 48V/3.8A, 180W
Compact 48V source with DIN molding and up to 180W.
exc. VAT
inc. VAT
Fiber Arsenal SFP+10Gbps, LC dup., 10km, SM, 1310nm, DDM,-40-85°C, Cisco
with TX wavelength: 1310, for temperature range-40 to 85 ° C, cisco compatible
exc. VAT
inc. VAT
Fiber Arsenal SFP 10/100/1000Base T Copper RJ45,-40-85°C, Cisco, Ceragon compatible
SFP Transceiver 1,25Gbps, 1000Base-T, UTP Cat5, 100m, RJ-45,-40 to 85 ° C, 3.3V, Cisco, Ceragon
exc. VAT
inc. VAT
Optical cable hybrid Fiber Arsenal, 2vl, 2x LC, SM, Cu 2x1.5mm, Outdoor
Outdoor hybrid singlemode 2VL. The cable for connecting not only MW units using an optical fiber, which also allows power thanks to integrated copper wires. It is supplied in a two-string version, on both sides terminated by LC/PC connectors (on one ...
from
41.21 EURexc. VAT
from
49.87 EURinc. VAT
variants
M12 SIAE Alfoplus connector cover-3D printing
Spare cap for connector M12 (routing, DC power supply, MGMT port) for SIAE units. Made 3D printing of UV durable material.
exc. VAT
inc. VAT
Fiber Arsenal SFP 1.25Gbps, LC dup., 20km, SM, 1310nm, DDM,-40-85°C, Cisco
with TX wavelength: 1310, for temperature range-40 to 85 ° C, cisco compatible
exc. VAT
inc. VAT
Fiber Arsenal SFP WDM, 1.25Gbps, LC simp., 20km, 1310/1550nm, DDM,-40°C to +85°C, Cisco
with TX wavelength: 1310, for temperature range-40 to 85 ° C, cisco compatible
exc. VAT
inc. VAT
Fiber Arsenal SFP WDM, 1.25Gbps, LC simp., 20km, 1550/1310nm, DDM,-40°C to +85°C, Cisco
with TX wavelength: 1550, for temperature range-40 to 85 ° C, cisco compatible
exc. VAT
inc. VAT
Grounding kit for Ceragon, SIAE, Exalt units
Earthing set for Ceragon IP-20 and IP-50, SIAE Alfoplus/Alfoplus2 and Exalt units, which, when installed correctly, ensures the prescribed earthing according to the manufacturer's conditions.
exc. VAT
inc. VAT
boundle
GPSR
Last visited
Description
SIAE ALFOplus is a Full Outdoor microwave link, available in the 7 - 80 GHz bands. Technology that contains many unique features is manufactured by SIAE Microelettronica, which has more than 60 years of experience in the development and production of radio modems and microwave technologies. With its annual production of over 100,000 terminals , the Italian company with its headquarters and production facility in Milan is ranked fourth in the world. Ericsson. The largest customers include telecommunication operators Vodafone and Telefonica, as well as customers from the ISP segment and system integrators.
ALFOplus is a new generation microwave link that has a guaranteed user capacity 436 Mbps in any type of traffic , including triple play services, in the 7-42 GHz bands.
With advanced data packet header optimization and compression functionality, it is possible to achieve up to 1 Gbps in a single 56 MHz channel , depending on the type of traffic.
The technology has an intelligent switch on which you can set up all modern functions. The switch includes full VLAN support including. QinQ, supports jumbo packets (MTU up to 10 Kbytes), QOS, LACP ...
The physical interface is solved by a combination of two metallic interfaces, or a combination of metallic and optical interfaces.
The radio part contains all the functions for maximum range and availability, especially lossless ACM in the range of 4QAM - 1024QAM and ATPC adjustable by 1 dBm. Detailed specifications can be found here.
Layer 2 Basic Functionality
Reasons to purchase an ALFOplus 18 GHz link
Parameters
Ethernet parameters
Physical parameters
Wireless parameters
