Shelly Pro EM-50 + 2x 50A terminals

Shelly Pro EM-50 is a single-phase two-channel meter with contactor control for professional monitoring of consumption of connected appliances. It has an integrated switch with dry contacts to control the contactor.More information

Producer

Shelly

Part No.

SHELLY-PRO-EM50

Code

00073700

Warranty

24 Month

Availability

Availability in stores

Order

Your price exc. VAT

70.52 EUR exc. VAT

VAT

21%

Your price inc. VAT

85.33 EUR inc. VAT

Ask for a better price

Description

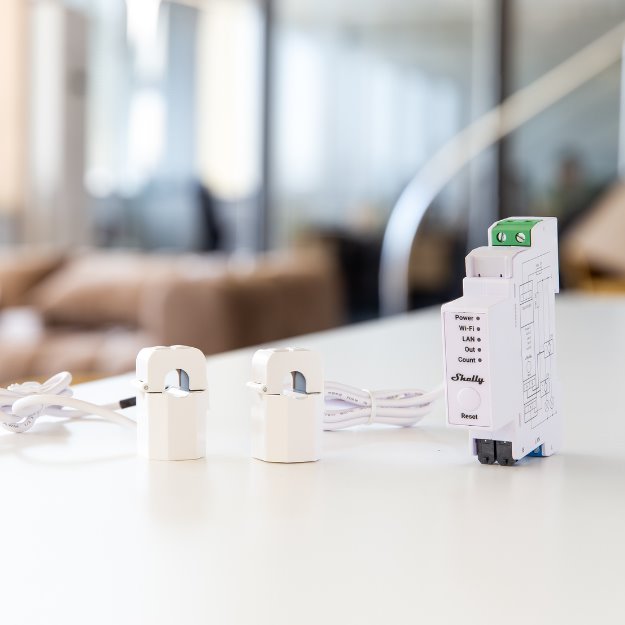

Shelly for EM-50 is a single-phase two-channel meter with contactor control for professional monitoring of consumption of connected appliances. It has an integrated switch with dry contacts to control the contactor. The device memory keeps measurements in the last 60 days at 1 minute intervals. The accuracy of the measurement is class B with a deviation of 1#i6per#. The package includes two 50A clamps. The Shelly Pro series is improved by higher temperature range and protection against overvoltage and overload . Shelly Pro is successful in both home installations and offices, shops and industrial operations.

power measurement-two independent measuring channels on the same phase
reports battery energy as well
4 quadrant measurement with optical pulse indication of energy consumption

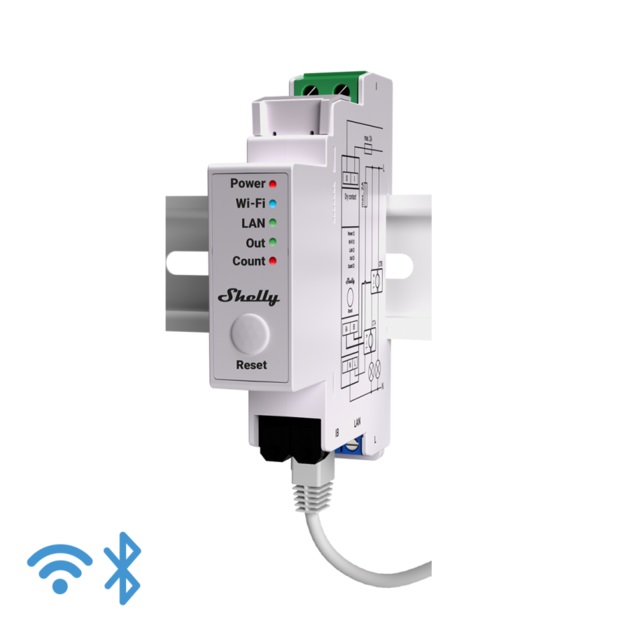

option to attach to the DIN bar
can be used with contactors for greater load
Easy to control through Shelly Smart Control as well as various protocols, platforms and voice assistants
supports scripting, webhooks, MQTT, websocket, https, UDP, TLS and own certificates

Key features:

LAN i wi-fi -the possibility of simultaneous use of Wi-Fi and LAN (RJ45) for backup connectivity
Bluetooth -adding a new shelly device is fast and easy via Bluetooth and smartphone with Shelly Cloud, Hub/Gateway is not required
power monitoring -accurate tracking of energy consumption
Industrial communication protocols -support MQTT, Modbus, Incoming and Outgoing WebSocket, UDP and MTLS
fully compatible with all common domestic assistants and platforms -Google Home, Amazon Alexa, Samsung Smart Things and many more

Parameters

Physical parameters
Bluetooth	Yes
Consumption	3
Ethernet	Yes
Humidity	30 % až 70 % RV
MODBUS	Ano
MQTT	Ano
Platforms	Google Home, Amazon Alexa, Samsung Smart Things, iOS
Power metering	Ano
Power Supply	AC
Processor	ESP32-D0WDQ6
Height (mm)	69
Length (mm)	94
Operating Temperature	-20° až +40 °C
Width (mm)	19
Wireless parameters
WiFi Standards	802.11b/g, 802.11n
