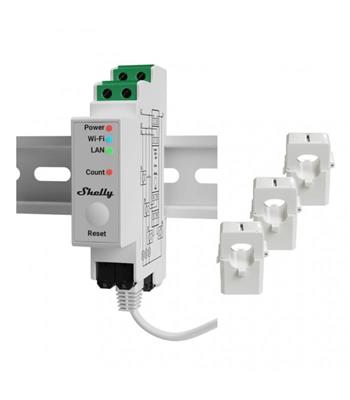

Shelly Pro 3EM + 3x 120A terminals

Shelly Pro 3EM is a 3-phase electricity meter for professional monitoring of consumption of connected appliances. The device memory retains measurements for 60 days with a resolution of 1 minute for each phase. The measurement accuracy is class B with a deviation up to 1 #i6per #.More information

Producer

Shelly

Part No.

SHELLY-PRO-3EM

Code

00072873

Warranty

24 Month

Availability

Availability in stores

Order

Your price exc. VAT

107.31 EUR exc. VAT

VAT

21%

Your price inc. VAT

129.84 EUR inc. VAT

Ask for a better price

Description

Shelly for 3em is a 3-phase electricity meter for professional monitoring of consumption of connected appliances. The device memory keeps measurements in the last 60 days with a resolution of 1 minute for each phase. The measurement accuracy is class B with deviation to 1 #i6per #. The package includes three 120A clamps. Shelly Pro 3Em has scripting functions (full support for MJS) for its own automation scenarios based on external data or various events. MQTT logs, incoming and outgoing websoket, UDP and MTLS are also supported.

The Shelly Pro series is improved by higher temperature range and protection against overvoltage and overload . The range products can be easily installed without the need for other components in a circuit breaker on a standard DIN bar . Wireless connectivity will allow full automation without additional connecting cables. Shelly Pro is successful in both home installations and offices, shops and industrial operations.

key features:

3-phase electricity meter -high measurement accuracy with deviation up to 1 #i6per #
LAN i wi-fi -the possibility of simultaneous use of Wi-Fi and LAN (RJ45) for backup connectivity
Bluetooth -adding a new shelly device is fast and easy via Bluetooth and smartphone with Shelly Cloud, Hub/Gateway is not required
Industrial communication protocols -support MQTT, Modbus, Incoming and Outgoing WebSocket, UDP and MTLS
fully compatible with all common domestic assistants and platforms -Google Home, Amazon Alexa, Samsung Smart Things and many more

Power supply:
current transformer:	3x CT120 included

measurement:
temperature sensor:	Yes
Voltmeter's accuracy:	± 1 #i6per #
AMPERMETS Precision:	± 1 # i6per # (2-120 A), ± 2 # i6per # (1-2 A), ± 5 # i6per # (0-1 A).
History of measured data:	min. 60 days with 1min. By resolution for each phase

Parameters

Physical parameters
Bluetooth	Yes
Consumption	3
Ethernet	Yes
Humidity	30 % až 70 % RV
MODBUS	Ano
MQTT	Ano
Platforms	Google Home, Amazon Alexa, Samsung Smart Things, iOS
Power metering	Ano
Power Supply	AC
Processor	ESP32-D0WDQ6
Height (mm)	69
Length (mm)	94
Operating Temperature	-20° až +40 °C
Width (mm)	19
Wireless parameters
WiFi Standards	802.11b/g, 802.11n
