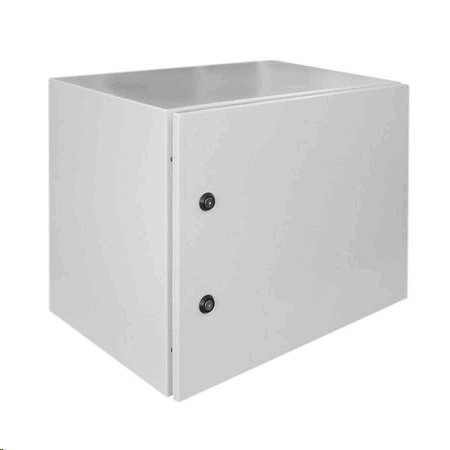

RACK, 19", 9U, 600x400mm, wall-mounted

Universal welded wall switchboard for elements of structured wiring of a smaller range, or for installing elements of telecommunications distribution with a wide range of uses.
Its dimensional variability, versatility and high coverage allows use both in industry and institutions such as schools, banks, authorities, etc.

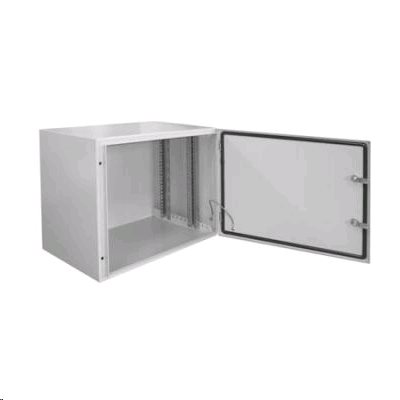

This switchboard comes with IP-65. There is a cast seal on the door that ensures a high standard of tightness.

The switchboard consists of a welded, self-supporting sheet of 1.3mm sheet (reinforced on the hem around the door by reverse boundaries, thus creating a relative sheet of 2.6mm) adapted for wall mounting. The skeleton is around the door hem of the bound to form a drainage groove.

The attachment can be done through the four holes on the back of the cabinet. The door hanging is made on two or three door hinges, depending on the height of the switchboard. The door against opening is made using one-point cylinder locks.

By default, cabinets are supplied with surface treatment for outdoor environments. They are equipped with a thermoreactive paint color made of pure polyester with increased resistance to sunlight and external weather conditions. The basic shade is RAL 7035,

parameters:

name	value
Type:	Wall
pitch:	19"
Covering:	IP 65
doors:	Metal
height:	9U
width (mm):	600
depth (mm):	400
height (mm):	500
Color:	gray
