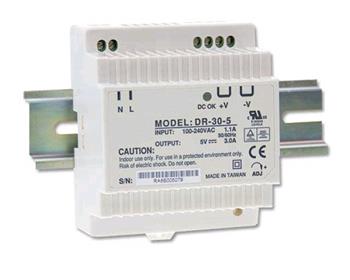

Průmyslový zdroj CARSPA DR-30-5 na DIN lištu 30W, 5V

Name: Průmyslový zdroj CARSPA DR-30-5 na DIN lištu 30W, 5V
Brand: Carspa
SKU: 29651
Price: 152.46 CZK
Availability: InStock

Průmyslový zdroj CARSPA DR-30-5 na DIN lištu 30W, 5V Další informace

Výrobce

Carspa

Kód

00029487

Záruka

24 Měsíce

Dostupnost

Objednat

Vaše cena bez DPH

126 Kč bez DPH

DPH

21%

Vaše cena s DPH

152 Kč s DPH

Popis

DR-30W
Model		DR-30-5	DR-30-12	DR-30-24
Output	DC voltage	5V	12V	24V
	Voltage tolerance	±2%	±1%	±1%
	Rated current	3A	2A	1.5A
	Current range	0~3A	0~2A	0~1.5A
	Rated power	15W	24W	36W
	Ripple&noise	80mvp-p	100mvp-p	150mvp-p
	DCvoltage ADJ.range	-9%~+10%	±10%	±10%
Input	Voltage range	90~264VAC,127~373VDC
	Frequency	47~63Hz
	AC current	0.88A/110VAC, 0.48A/220VAC
	Efficiency	75%	81%	83%
	Inrush current	cold start current 15A/115VAC, 30A/230VAC
	Leakage current	< 1mA/240VAC
Protection	Over load	above 105%~150% rated power
		protection type: hiccup mode,auto-recovery after fault condition is removed
	Over voltage	6.8~8.2V	15.6~17.8V	30.6~33.2V
		protection type:cut off output voltage,diode clamp
Environment	Working temp,humidity	-20?~+60?, 20%~90%RH
	Storagetemp,humidity	-40?~+85?, 10%~95%RH non-condensing
	Withstand vibration	10~500Hz, 2G 10min/1cycle, period for 60 minutes, each axes
Safety	Withstand voltage	I/P-O/P: 3KVAC I/P-FG:1.5KVAC O/P-FG: 0.5KVAC
Fitstandard	Safety standard	Fit UL1012
	EMC standard	meet EN55022, CLASS A
Others	Dimension	*789356mm (LWH)*
	Weight/packing	0.27kg/48pcs/14kg/0.03m³/1.07CUFT
Note	1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25? of ambient temperature.
