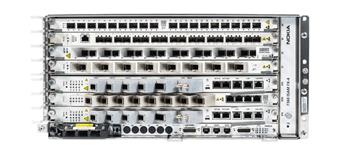

Nokia 7360 FX-4, GPON/XGSPON/Multi-PON modular OLT

Nokia 7360 FX-4 is effective, high-capacity XG (S) PON OLT for providing ultra-wide services wide range of users with excellent price. performance. It offers a total of 4 positions for PON cards, each of the cards has a 16x multi-form port. It is therefore possible to combine a classic and xgspon solution on one card, or within one SFP slot. In total, it is using one alt Nokia 7360 FX-4 to serve more than 8000 users. A narrow throat will not even the routing capacity of the OLT, which is able to handle the operation up to 480 Gbps (each slot connected using 2x 100 Gbps bus). For management OLT you can choose a systemic solution of the Central Supervision of Nokia AMS or use the CLI interface of each unit.

In the basic configuration, OLT is equipped with 48 V DC source, 1x multi-form card and control card. Other cards, SFP modules and Pon port licenses can be added individually.


The benefits of Nokia's solution

Technical Specifications:

• Ethernet bridging
• Virtual Local Area Network (VLAN) Stacking Forresidential and Business Access
• 802.3ad trunking: link aggregation Controlprotocol (LACP)
• Multiple Spanning Tree Protocol (MSTP), Rapidspanning Tree Protocol (RSTP) and Spanning Treeprotocol (STP) Support
• 4,095 VLAN-UDS, VLAN STACKING (Q-IN-Q), 128,000move, Add and Change (Mac) Addresses
• MPLS
• L3 Forwarding (IPv4)
• RIP V2, OSPF V2, BGP V4, IS-IS-IS ROUTING PROTECOLS
• Multicast Forwarding, High Performance Internetgroup Management Protocol (IGMP) Processing, IGMP Proxy
• IP Quality of Service (QOS)
• Dynamic Host Configuration Protocol (DHCP) Relay, Multiple Instances
• Access Control List, Denial of Service Protection
• Malicious Mac Protection
• Lawful Intercept
• Billing, Accounting and Hubbing Support
• Ethernet Ring Connectivity
• Supports Central Broadband Remote Access Server and Distributed Service-EDGE Models
• Point-to-Point Protocol (PPP) Connectivity Tosingle or Multiple Systems
• up to 16,000 subscribers per system
