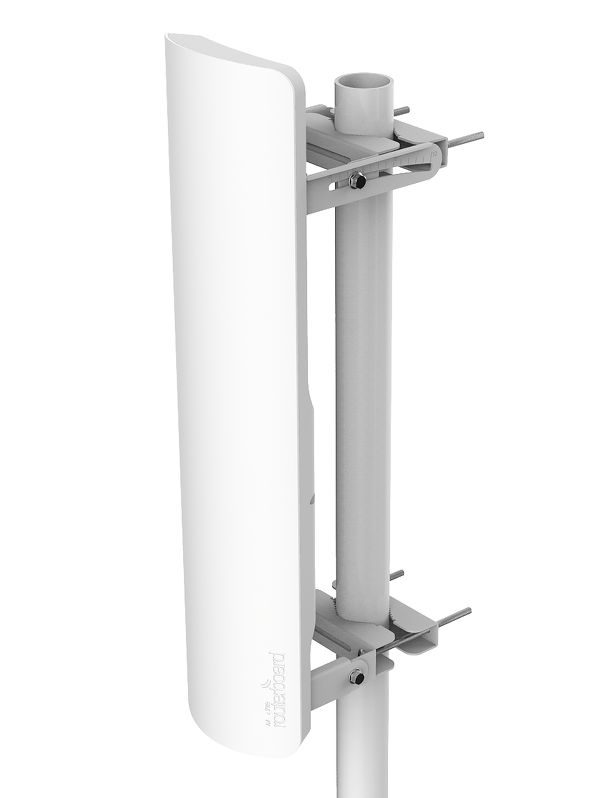

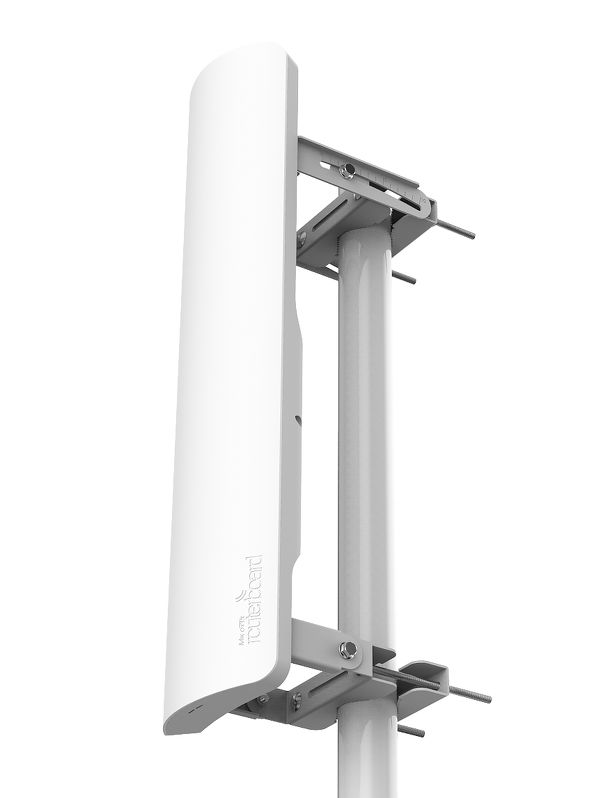

MikroTik MTAS-5G-19D120 (mANT 19s), Sector antenna, 5 GHz, 19 dBi, 120°

Sector antenna from the Mant series operating in the 5 GHz band (5170-5825 MHz) and characterized by 19 dBI , radiation angles 120 °/5 ° and two RSMA FEMALE connectors. Mant19s antenna is tailored to BaseBox, NetBox, NetMetal or other outdoor equipment.

Thanks to the high-quality workmanship, the antenna has a great front-back ratio ( 30 dB ) using the rear shielding cover and a flexible chassis.



parameters:

name	value
Insulation between connectors (db):	40
outside, siso:	2 x 2
polarization:	V/H
front-back ratio (db):	30
VSWR:	<1.4
radiation angle H/V (°):	5 /5
wireless frequencies (GHz):	5
Antenna type:	Sector
Antenna gain (db)	19
Use:	Outdoor
Weight (g):	1 270
depth (mm):	78
width (mm)	152
height (mm):	3,2

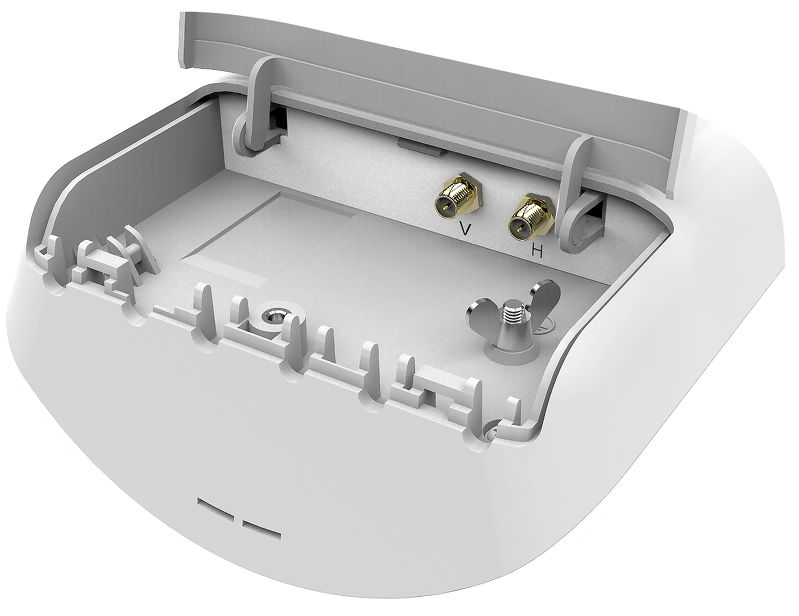

VF connectors:	(2) RSMA FEMALE

Package content

antenna

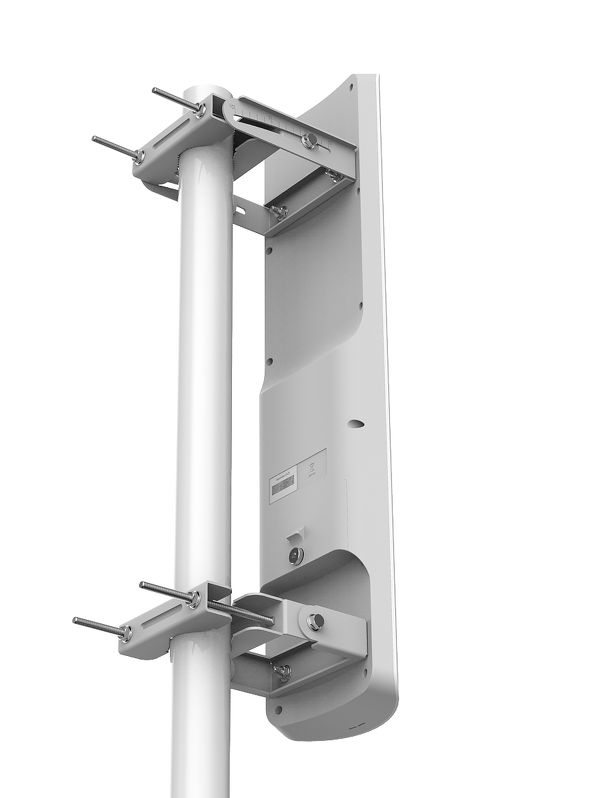

holder
