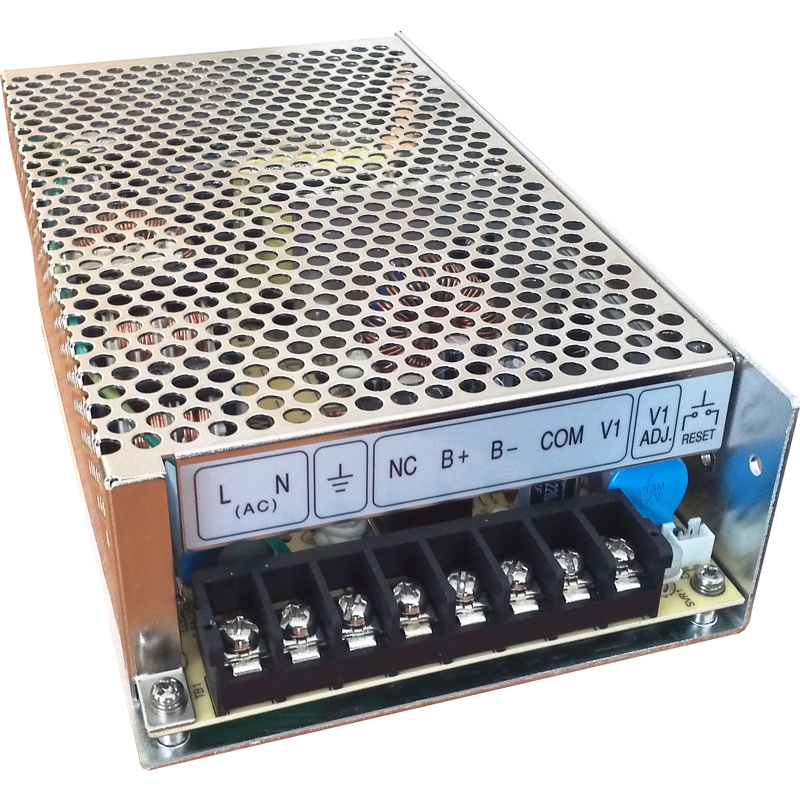

Mean Well AD-55B switching backup power supply, 53W 24-29V OUT

Connected Source Meanwell AD-55B with battery charger, UPS function, output: 24 ~ 29V

properties:

• Power: 51 to 53W
• Closed Form (Case)
• screw connections
• Output: Explanatory voltage range: CH1 27.6V (optional 24 ~ 29V)/1,8a; CH2 26.5V/0.16A
• Input: 88 ~ 264VAC/124 ~ 370VDC
• overload protection by shutdown, car recovery
• protection against short circuit
• 100# i6per# burn-in-test at full load
• built-in distress filter, low residual waves
• Operating temperature range:-10 ...+60 ° C
• overload protection: 105 ... 150#i6per#
• Protection against the AD-55b assignment: 28,98 ... 37,26V
• insulation voltage from input to output: 3000V AC
• insulating resistance: 100m?
• time of overlapping network failure (at 230V): 80ms
• Weight: 500g
• Input Rated current (at 230V): 1a
• shock current for cold start (at 230V): 40a
