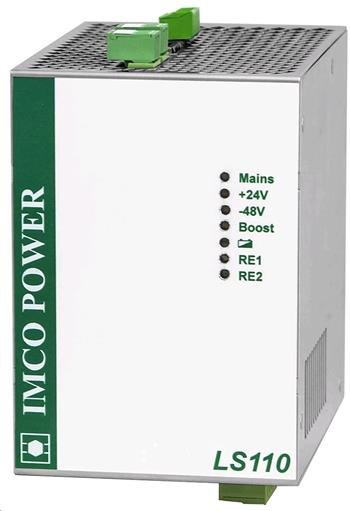

IMCO POWER LS110.HS 24481002, backup source 24V+48V, SNMP

The back-up power supply LS110.HS 24481002, in DIN rail design, with two output voltages, is used to back up the supply of 24 (27.5) V and-48 V devices. The total power of the source is 280 W, the power of the 48 V inverter module is 100 W. In the event of a mains power failure, the connected 24 V battery ensures interruptible power supply to the load. After the power supply is restored, the source ensures fast charging of the accumulator to its full capacity. The charging voltage is temperature compensated.

LEDs on the front panel signal the status of the mains output voltages, fast charging and battery status. Remote signaling signals a power failure and battery capacity drop to 1. The SNMP adapter with its own WEB page allows you to control 2 independent relays that are programmed as IP address watchdogs, manual ON/OFF, or device restart. It is also possible to monitor 2 external binary signals.

The source is intended for mounting on a DIN rail. The input connection is 3-wire via a removable connector with a wire cross-section of up to 2.5mm2.

Electrical safety standards-STN EN 60950, EMC-STN EN 61000-3-2, STN EN 55022


Package contents: temperature sensor, power cable for devices with input power 100-230V~50/60Hz (in the case of sources with this option).
