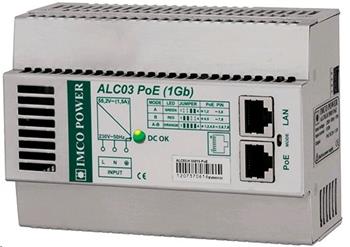

IMCO POWER ALC03.H 55015, PoE source 55V/1.5A, 83W

Name: IMCO POWER ALC03.H 55015, PoE source 55V/1.5A, 83W
Brand: IMCO POWER
SKU: 34407
Price: 154.44 EUR
Availability: InStock

Mains supply 85-265V ~ 50Hz/55V (1.5A), DIN rail, power passive PoE 1Gb, optional power conductors.More information

Producer

IMCO POWER

Part No.

EV003155

Code

00032622

Warranty

36 Month

Availability

Availability in stores

Order

Your price exc. VAT

127.64 EUR exc. VAT

VAT

21%

Your price inc. VAT

154.44 EUR inc. VAT

Ask for a better price

Description

ALC03.H 55015 with POE for long-distance power supply over ETH. with a transfer rate of up to 1 Gbps and with power up to 83W (55.2V/1.5A) .

LAN The input also serves as a POE output and is protected against external velifts overvoltage protection. Sources are adapted for long-term work and in high-grounding environment at temperatures from-25 ° C to +60 ° C. In production, components are used that are not subject to rapid aging and also have input fitted with Class D protection.

LED on the front panel indicates a source and settings of standards A or B for POE, or A+B. POE can be set on the side of the source.

Parameters

Physical parameters
DC Output Voltage (V)	55.2
DIN rail mounting	Yes
Input Voltage (V)	230
Local signalling	LED
Network interface (Mbps)	10/100/1000
Output Current (A)	1.5
Depth (mm)	68
Design	DIN rail, Standalone
Efficiency (%)	90
Height (mm)	90
Weight (kg)	0.5
Width (mm)	124
PoE parameters
Number of PoE ports	1
PoE standard	Pasivní
Powering
PoE	Yes
Power consumption (W)	83
Typ zdroje	PoE
