Huawei OptiXstar EG8145X6-10, SC/APC connector, official CZ distribution

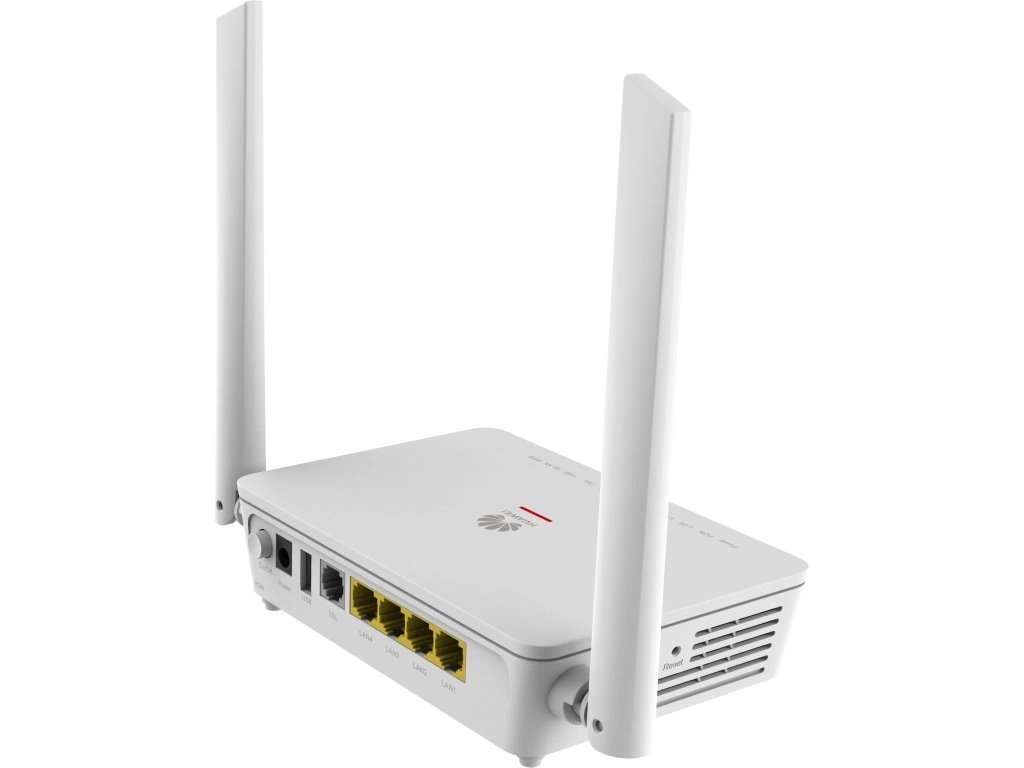

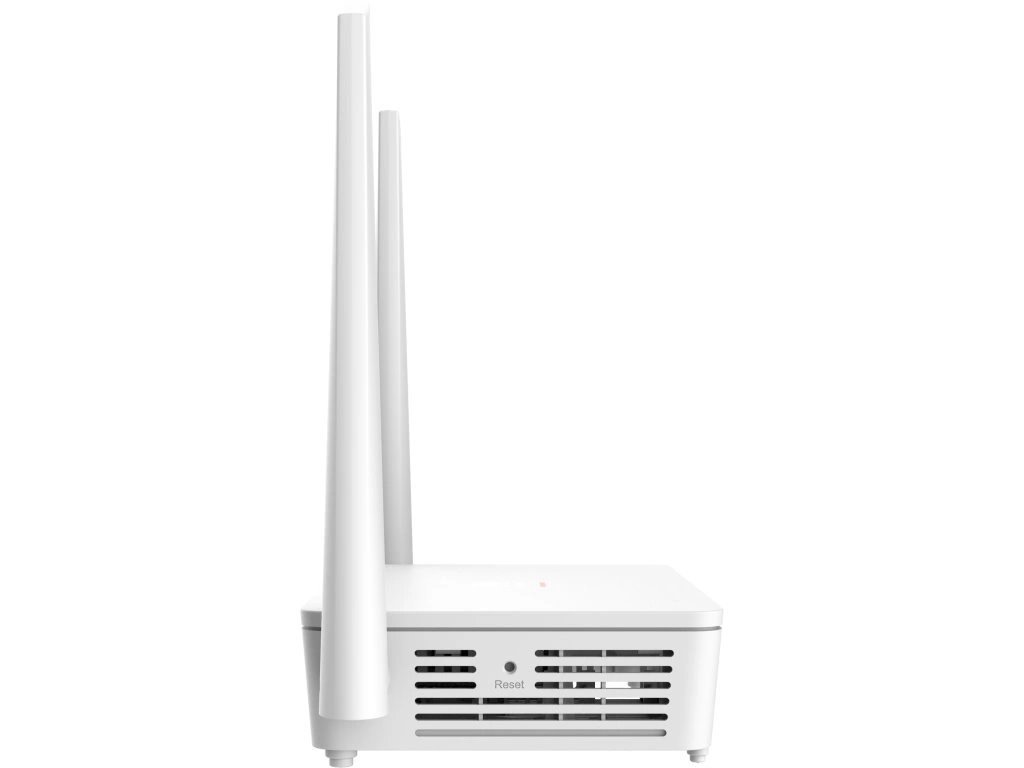

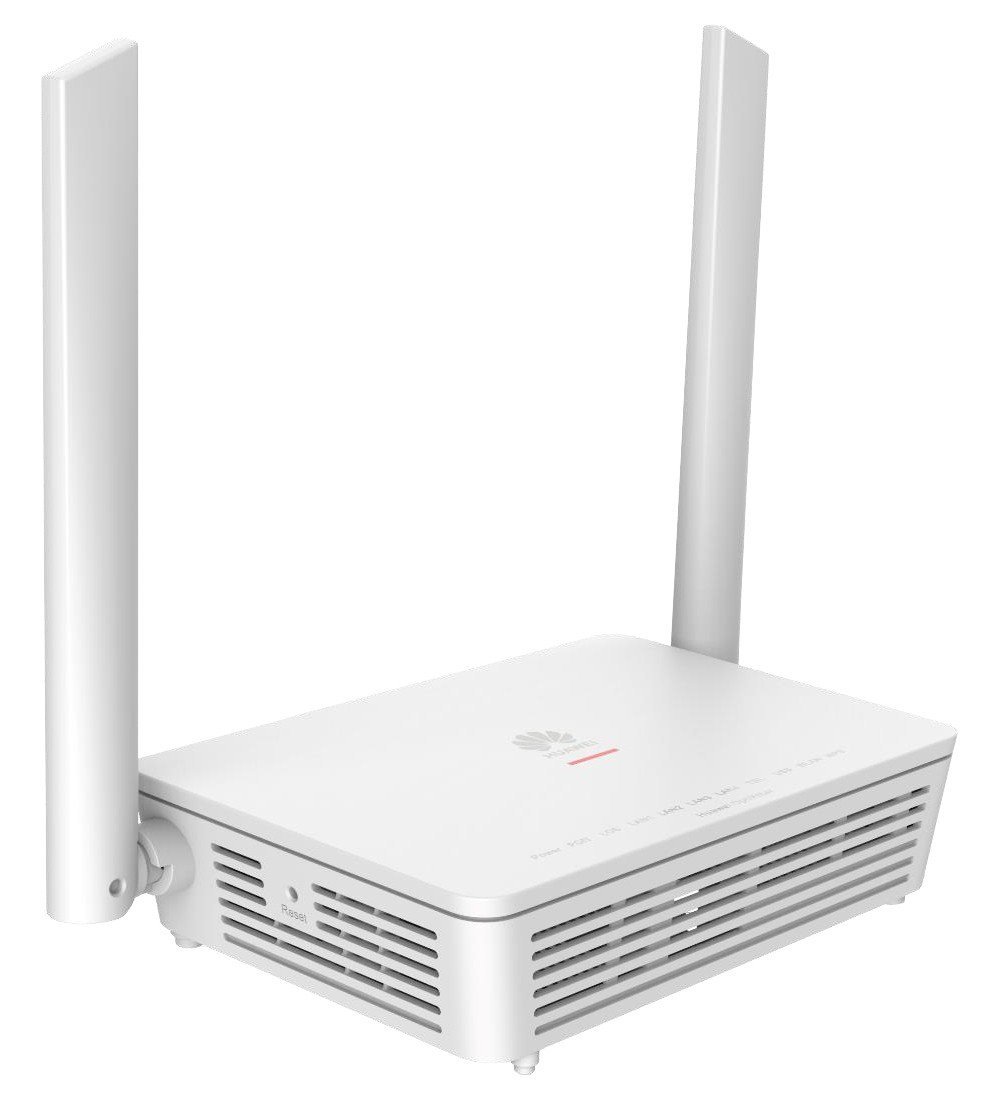

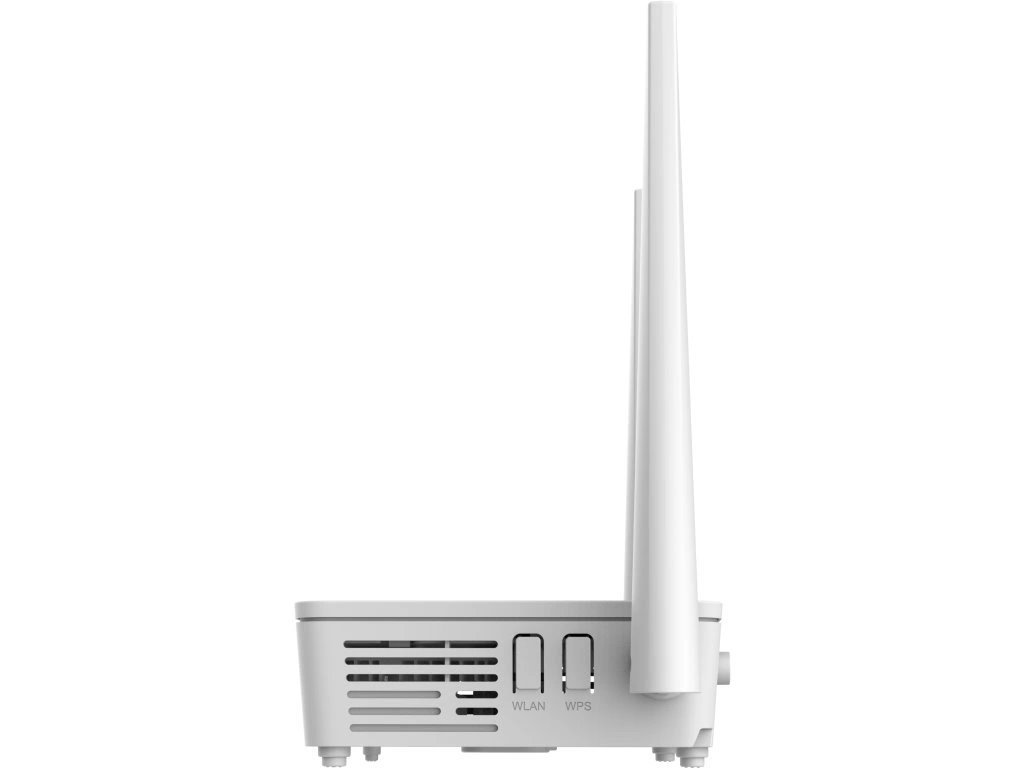

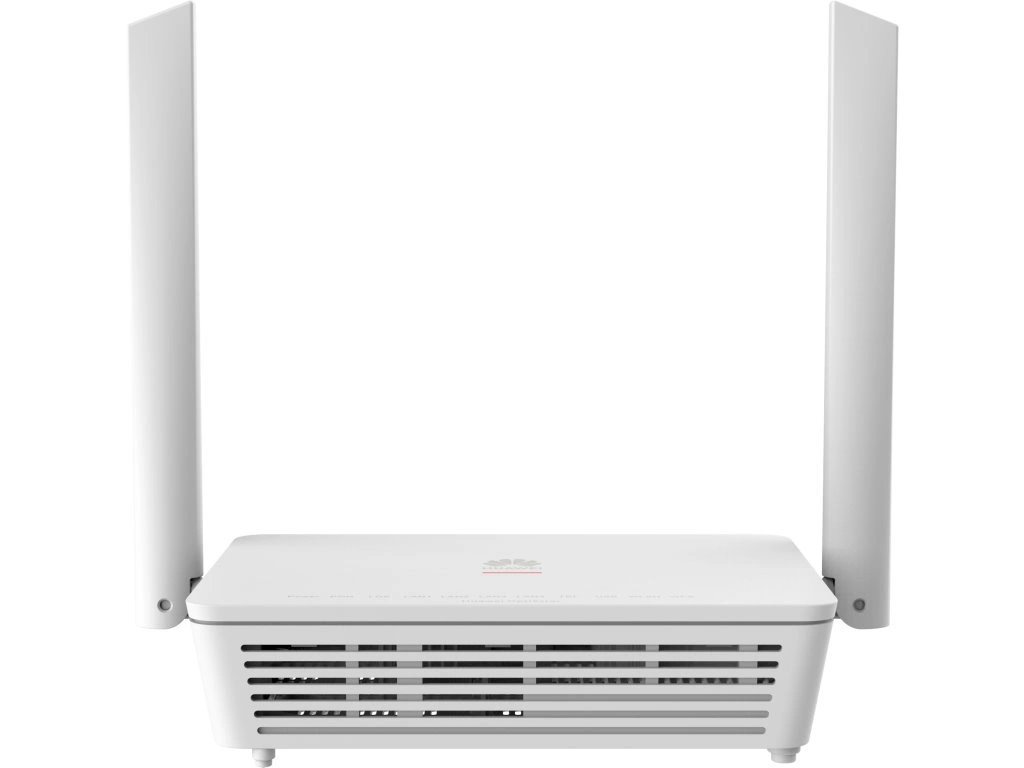

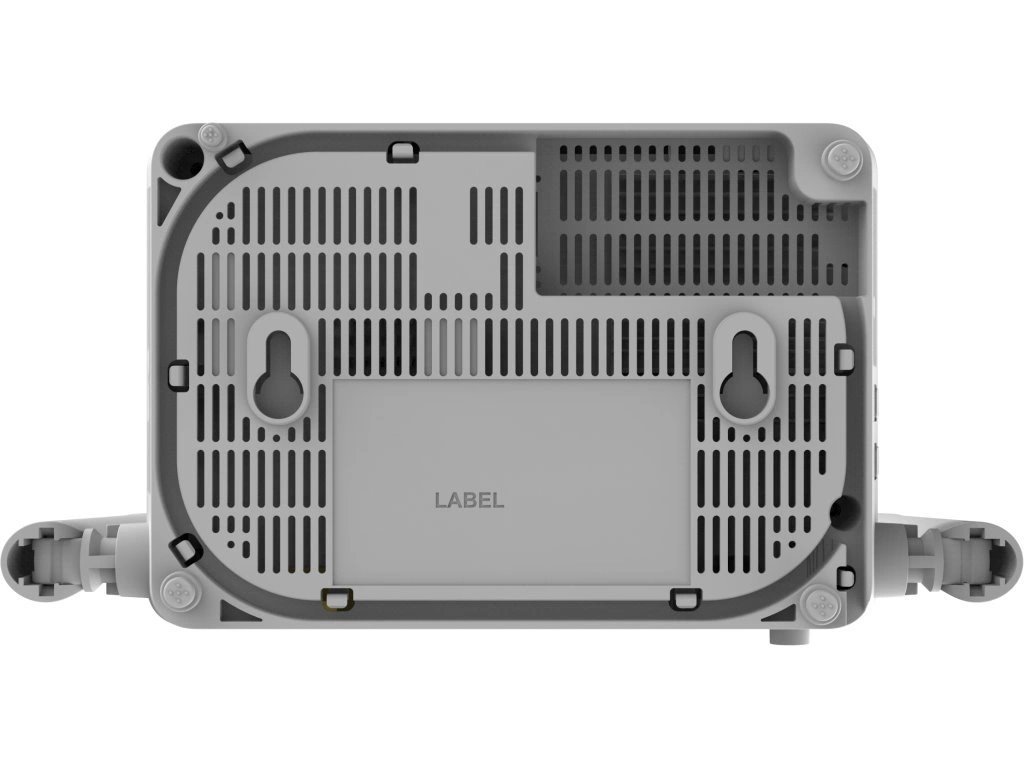

Huawei Optixstar EG8145x6-10 is a client unit (Ont) for GPPS network that offers 1x Gpon port with SC/APC connector, 4x 1g Ethernet port, 1x telephone port and USB port. The EG8145X6 will take care of wireless wifi communication with connected devices in ...More information

Producer

Huawei

Code

00073306

Warranty

12 Month

Availability

Availability in stores

Order

Your price

Price after login

Ask for a better price

Description

Huawei Optixstar EG8145x6-10 is a client unit (Ont) for Gon network that offers 1x Gpon with SC/APC , 4x 1g Ethernet port, Port . The EG8145X6 will ensure wireless wifi communication with connected devices in the 2.4 and 5 GHz band using the latest WiFi 6 (802.11AX) , making it a device suitable for homes and offices. Of course there is support for QoS and VLAN. Supplied with a power adapter.

parameters:

name	value
type Ont	routing
Type of Gpon's connector	SC/APC, CLASS B+
LAN speed:	4x 10/100/1000 Mbps
Standard WiFi	WiFi 6 (2,4 + 5 GHz)
Max. Energy Consumption (W):	6
Better speed:	1.244/2.488 Gbps
wavelength-US/DS (nm):	1310 /1490
operating temperature	0-40 ° C
Dimensions (mm)	195 x 125 x 35 mm

Package content:

device
power adapter 12V/2a

Parameters

Ethernet parameters
Number of LAN ports 10/100/1000	4
Optical parameters
Optical connector type	SC
Polishing type	APC
Wireless parameters
Frequency	2,4 GHz, 5 GHz, 2,4 GHz + 5 GHz
WiFi Standards	802.11a, 802.11b/g, WiFi 4 (802.11n), WiFi 5 (802.11ac), WiFi 6 (802.11ax)
WIFI transfer rate - 2.4 GHz [Mbps]	574
WiFi transfer rate - 5 GHz [Mbps]:	2402
