      boundle

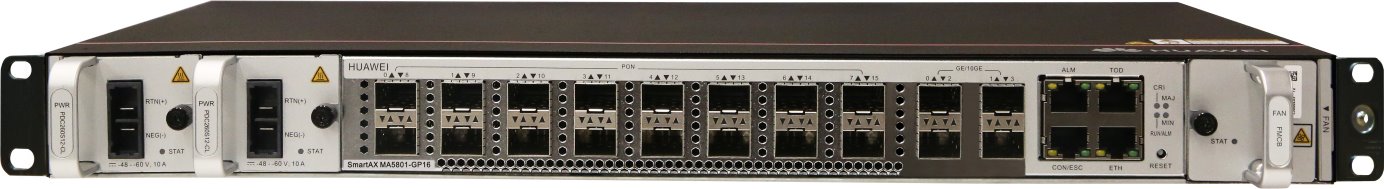

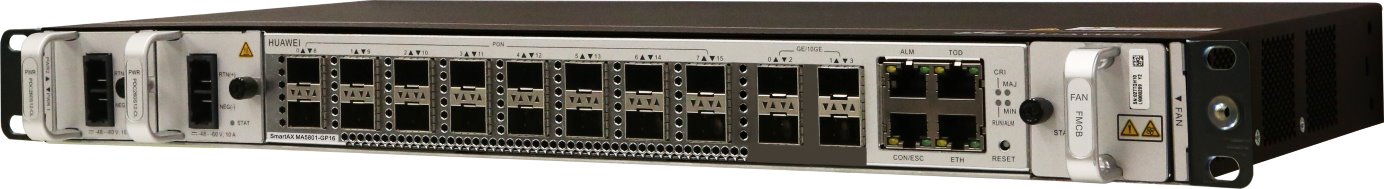

      Huawei MA5801 GP16 DC OLT, official CZ distribution, including 16x C+ SFP and licenses
      Compare Set Watchdog

      Huawei MA5801 GP16 DC OLT, official CZ distribution, including 16x C+ SFP and licenses

      The Huawei MA5801-GP16 is a top alt terminal designed for the Gpon network, which offers a 16x GPPP port for connecting client devices (ont) and 4x 10g SFP+ uplink port. In total, up to 1024 client units can be connected to the MA5801-GP16. All in compact 1U ...More information

      Producer
        Huawei

      Code
       00072779
      Warranty
      12 Month
      Availability

      not in stock

      Availability in stores
      Order

      Your price
      Price after login

      Ask for a better price

      Huawei MA5801 GP16 DC OLT, official CZ distribution, including 16x C+ SFP and licenses - components

      Count Name Code Description Availability Your price
      exc. VAT      		 Your price
      inc. VAT

      2 weeks
      		2pcs. Power Cable Huawei OLT,3m,2.5mm^2,blue/black,EPC4
      00072777
      		 00072777

      2 weeks

      to week
      		16pcs. Huawei PON Port License,Based on per PON Port
      00072176
      		 00072176

      to week

      to 1 month
      		1pcs. Huawei Basic Software Package(based on per host) for MA5801
      00072172
      		 00072172

      to 1 month

      to 2 month
      		1pcs. Huawei MA5801 GP16 DC, official CZ distribution
      DC verze, bez licencí
      00072170
      		 00072170 Huawei MA5801-GP16 je špičkový OLT terminál určený pro GPON síť, který nabízí 16x GPON port pro připojení klientských zařízení (ONT) a 4x 10G SFP+ uplink port. Celkem je k MA5801-GP16 možné připojit až 1024 klientských jednotek.

      to 2 month

      to 2 month
      		16pcs. Huawei PON Transceiver,SFP,1490nm(Tx)/1310nm(Rx),2488M(Tx)/1244M(Rx),3dBm,7dBm,-32dBm,SC/UPC Compatible with SC/PC,SM
      00072780
      		 00072780

      to 2 month


        Ask for a better price

        Your e-mail
        Phone
        Quantity
        Comment

        Description

        The Huawei MA5801-GP16 is a top alt terminal designed for the GPON network that offers 16x Gpon Port for client devices (Ont) and 4x 10g SFP+ uplink. All this in the compact 1U Chassis with a wide working temperature range-40 to +65 ° C and the power input only 140W (typically 95 W). Power is realized by two redundant DC inputs with a range of 40-72 V. variant can be ordered with 2x AC inputs.

        The price includes OLT, 16x Gpon C+ SFP, Basic Software Package, 16x license for Gon Port and mounting accessories. License for attached ont needs to be purchased separately.

        parameters:
        name value
        type OLT Fixed Chassis
        Number of gon ports 16
        Number of Pot Reflect 4x 1/10Gbps
        Max Number of Ont 1024
        switching capacity 140 Gbit/s
        routing table (IPv4/IPv6) 8192 /4096 records
        ARP Table 16384 records
        Bursing speed per port: 1.244/2.488 Gbps
        wavelength-US/DS 1310 /1490 nm
        operating temperature -40-65 ° C
        Dimensions 442 x 220 x 43.6 mm (1U profile)
        Weight 5 kg


        Package content:
        • MA5801 GP16 H2 (2x DC source)
        • Basic Software Package
        • 16x gpon C+ SFP
        • 16x gpon port of lip
        • 2x power cable
        • mounting accessories

        Parameters

        Počet SFP portů 16

        Optical parameters
        Number of GPON Ports 16
        Počet PON portů 16
        PON standard GPON

        Physical parameters
        Height (U) 1
        OLT Type Fix Chassis (non-expandable)

        Powering
        Power Supply DC
        All parameters Less parameters
