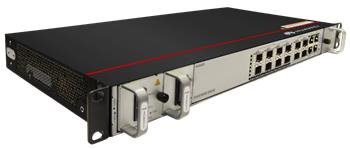

      Huawei MA5801 GP08 H3 OLT, DC, official CZ distribution, including 8x C+ SFP
      Compare Set Watchdog

      Huawei MA5801 GP08 H3 OLT, DC, official CZ distribution, including 8x C+ SFP

      The Huawei MA5801-GP08 is a top alt terminal designed for the Gpon network that offers an 8x Gpon port for connecting client devices (ont) and 4x 10g SFP+ uplink port. In total, up to 1024 client units can be connected to the MA5801-GP08. All in compact 1U ...More information

      Producer
        Huawei

      Code
       00072778
      Warranty
      12 Month
      Availability

      not in stock

      Availability in stores
      Order

      Your price
      Price after login

      Ask for a better price

      Huawei MA5801 GP08 H3 OLT, DC, official CZ distribution, including 8x C+ SFP - components

      Count Name Code Description Availability Your price
      exc. VAT      		 Your price
      inc. VAT

      to 2 month
      		1pcs. Huawei MA5801 GP08 H3, official CZ distribution, incl. 8x C+ SFP
      DC verze, bez licencí
      00072171
      		 00072171 Huawei MA5801-GP08 je špičkový OLT terminál určený pro GPON síť, který nabízí 8x GPON port pro připojení klientských zařízení (ONT) a 4x 10G SFP+ uplink port. Celkem je k MA5801-GP08 možné připojit až 1024 klientských jednotek.

      to 2 month

      2 weeks
      		2pcs. Power Cable Huawei OLT,3m,2.5mm^2,blue/black,EPC4
      00072777
      		 00072777

      2 weeks

      to week
      		8pcs. Huawei PON Port License,Based on per PON Port
      00072176
      		 00072176

      to week

      to 1 month
      		1pcs. Huawei Basic Software Package(based on per host) for MA5801
      00072172
      		 00072172

      to 1 month


        Ask for a better price

        Your e-mail
        Phone
        Quantity
        Comment

        Description

        The Huawei MA5801-GP08 is a top alt terminal designed for the GOND network that offers 8x Gpon Port for client devices (Ont) and 4x 10g SFP+ uplink. All this in a compact 1U chassis with a wide working temperature range-40 to +65 ° C and power input at full installation only 111 W (typically 64 W). Power is realized by two redundant DC inputs with a range of 40-72 V. variant can be ordered with 2x AC inputs.

        The price of the assembly contains altum, 8x Gpon C+ SFP, license and assembly accessories. License for connected ont must be purchased separately according to the required number.

        parameters:
        name value
        type OLT Fixed Chassis
        Number of gon ports 8
        Number of Pot Reflect 4x 1/10Gbps
        Max Number of Ont 1024
        switching capacity 110 Gbit/s
        routing table (IPv4/IPv6) 8192 /4096 records
        ARP Table 16384 records
        Bursing speed per port: 1.244/2.488 Gbps
        wavelength-US/DS 1310 /1490 nm
        operating temperature -40-65 ° C
        Dimensions 442 x 220 x 43.6 mm (1U profile)
        Weight 5 kg


        Package content:
        • MA5801 GP08 H2 (2x DC source)
        • 8x gpon C+ SFP
        • 8x License License Port
        • Basic Software Package
        • mounting accessories

        Parameters

        Počet SFP portů 8
        Power Supply DC

        Optical parameters
        Number of GPON Ports 8
        Počet PON portů 8
        PON standard GPON

        Physical parameters
        Height (U) 1
        OLT Type Fix Chassis (non-expandable)
