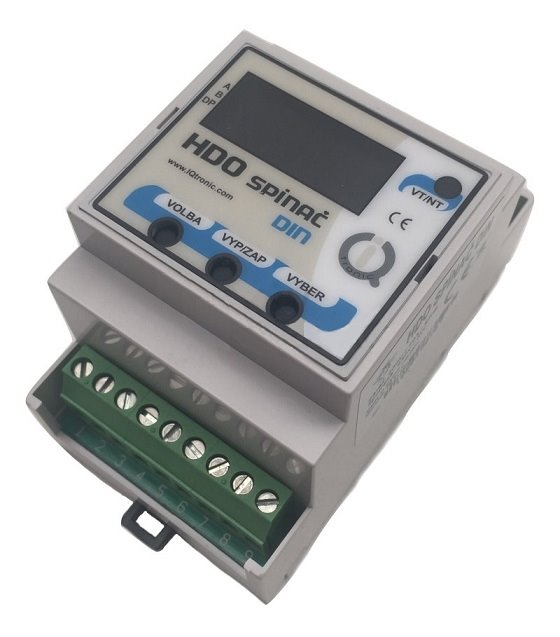

HDO switch on DIN rail

HDO switch for DIN mounting. If you no longer want to pay for such an expensive electricity, do not hesitate to order a HDO switch. Then you will no longer have to watch the right time to turn on the washing machine, dishwasher, heating and other appliances. The HDO switch will watch for you, automatically turn on the socket and announcing with an audio signal that it has connected the appliance.

The device works on the principle of HDO. It is a system used for mass remote control of appliances such as storage boilers, hot water tanks, etc. By using this system, significant energy savings are achieved.
Turning at the time of excess energy produced will send the HDO signal from the substation and the HDO receiver that is installed, closes the connected appliance and vice versa. Excess energy is thus maximum used and is then charged to the consumer at a lower price. The price advantage of the low tariff is depending on the charged rate (D45D to D25D) 14# i6per# up to 200# i6per# for kWh. The output of the device is a 230V bistrable relay with a maximum current load of 16A. Mounting to the switchboard on the DIN bar.

For proper function, the HDO receiver must be set as the HDO receiver controlling the electricity meter in the switchboard. The HDO receiver in your switchboard must be set for operative control: ZPA pulse/pulse, in the case of another (locality Hodonín, Břeclav, Nosislov-versacom) cannot be used.

product parameters:

• Method of assembly: DIN bar
• Including bus connection: Yes
• Input voltage: 230 V
• type of input voltage: AC
• Covering (IP): IP20
• maximum current load 16A

Package Dimensions:

• width: 125 mm
• length: 175 mm
• height: 75 mm
• Weight: 150 g
