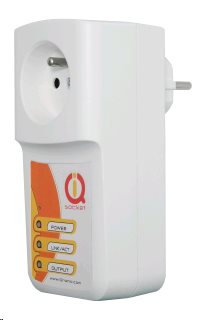

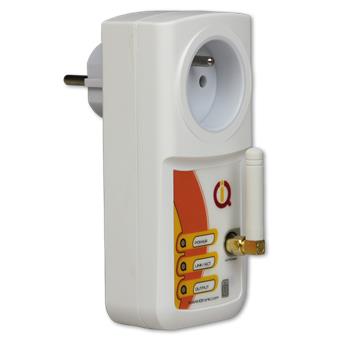

GSM Smart socket IQ Socket MOBILE IQTS GS300

The IQTS GS300 is a highly sophisticated device used to control the output socket, control appliances using SMS and re-arrange using a mobile phone. It can also be controlled using the term wirelessly via Bluetooth.
It is also possible to control voice self-service.

It is equipped with a universal input for connecting members: 8 temperature/humidity sensors or wireless adapter for connecting up to 10 additional sockets. Has 105 SMS commands implemented.

The output of the device is a 230V socket with a maximum current load of 16A with an internal switching element 30A! Also applicable for capacity loads-for example, switching sources.

From the model year 2021 all sockets already contain Full license.

• switching on and off appliances by SMS and scanning: 230V, 16a.
• fastening automatically using a planner or on an optional time.
• Automatic notification of the outage and starting the power supply.
• restart of the socket/server.
• Input status monitoring: A/D-Monitoring of the fence, levels of Slog1/log0, temperature and humidity.
• Thermostat function.
• Alarm function: temperature, humidity, A/D, or LOG1/LOG0 changes.
• alarm GSM signal alarm: jamming.
• 12 different alarm numbers, each can be set to a different event.
• time planner function, up to 30 actions.
• Automatic logging in all events into internal memory.
• voice self-service, also user optional.
• Configuration using Bluetooth with highly professional terminal processing with intuitive control.
• 1 administration password and 1000 user numbers.
• Possibility to change any text and response.
• Possibility to upload-Configuration, Download File Log-Up to 250 recent events.
• option to upload user numbers.
• upgrade FW device.
• option to change the SMS command permissions.
• option to control from internet gates.
• GPRS Sending state SMS TCP/UDP.
• highly sophisticated integrated navigation help.
• Control with Android app.
• External connector for connection of antenna.
• option to insert multiple commands in one SMS (160 businesses).
• option to perform 2 different actions for incoming calls.


parameters:

• name	value
  Power supply, consumption:	90-240VAC 3W
  Output:	230V/16A, switching element relay 30a
  operating temperature and humidity:	-10 to 50 ° C, max 80 #i6per #
  Working Conditions:	Normal 25 ° C, degree of protection: IP40
  GSM:	QUAD BAND 850 /900 /1800 /1900 MHz SIM Plug-in 3V
  Installation Category:	II. MAX 3000V Surge Class
  Dimensions (mm):	140 x 65 x 55/92
  Weight (g):	200
  Antenna connector:	SMA (F)
