FortiSwitch FS-424E

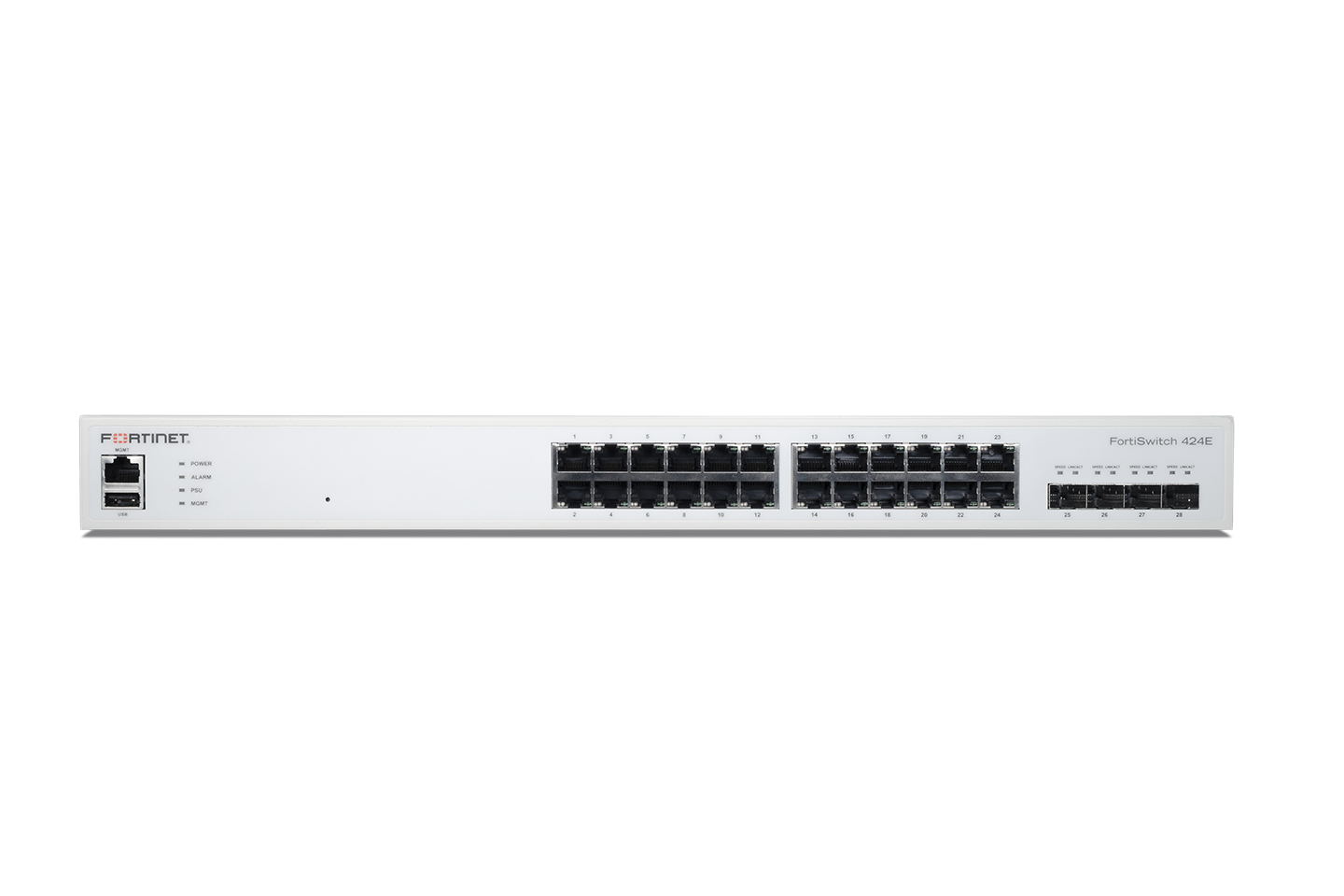

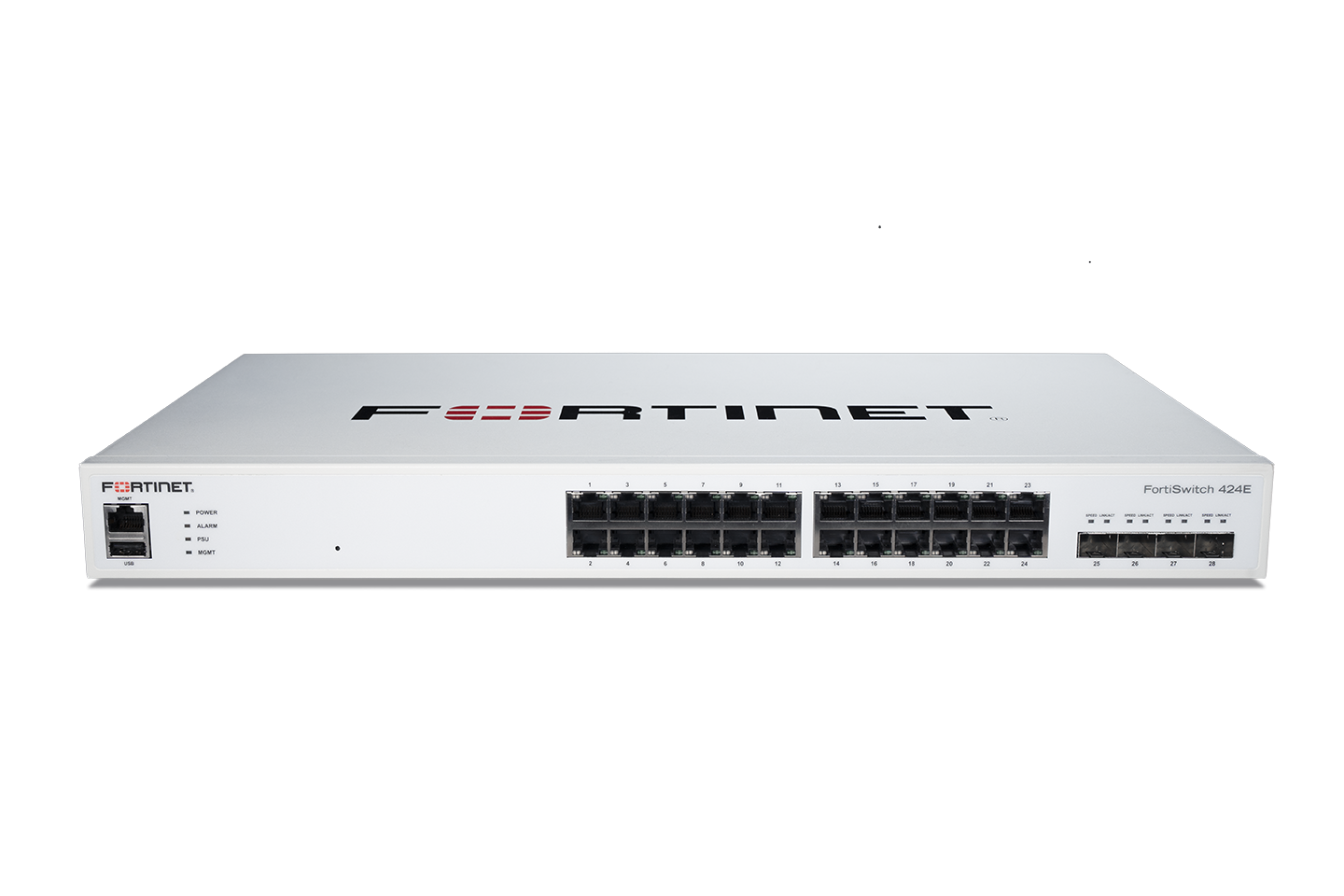

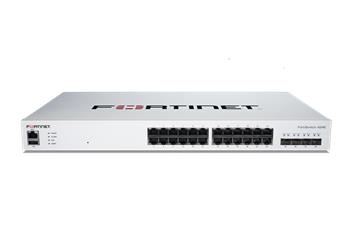

Fortiswitch FS-424E is fully managed by 1U Rack Layer 2/3 Switch , designed for access or distribution use in the enterprise environment or SD-Branch architectures. It has 24x GE RJ-45 ports and 4 SFP+ ports allowing 10? With a 128 Gbps switching capacity and 190 MPPS , it provides appropriate performance for medium and more loaded networks. It has a low power consumption of 23 W in standard operation and has active cooling (Airflow from the side backwards).

Switch supports the advanced L2/L3 features, including to 4? 000 VLAN , spanning tree (STP/MSTP) , link aggation , IgMP Snooping and expanded ACL . The routing functions allow the running of static and dynamic protocols. For management, Fortilink integration with Fortigate , web GUI, CLI and SNMPV3.

The FS-424E has dimensions 440 × 260 × 44mm , the weight is 3 kg. It is powered from the internal source (100–240? In AC), there is a possibility to install a redundant power for higher availability. Fortinet provides a limited lifetime warranty .
