EnGenius ECW526 WiFi 7 Access Point 2x2:2 Cloud Controller 10G Port

The Enterprise Wi-Fi range and PoE switches Engenius Cloud Series provide flexible, scalable and reliable Wi-Fi for a wide range of applications. Whether you are looking for AP to cover your offices or need to provide ultra-fast Wi-Fi access in a large hotel or campus, cloud-managed access points Engenius meet the requirements for high transfer speed and permeability for hundreds of clients.

Regardless of the current or planned network size, access points managed by cloud will meet your needs. You can only use a few APs or an unlimited number of access points in unlimited networks at different locations-regardless of their size, infrastructure or physical location.



Thanks to the simple AP configuration on one click, it is possible to build the entire network and put into operation in an extremely short time. Similarly, problems and operation analysis are more efficient with the cloud solution compared to the classic local controller-artificial intelligence (AI) allows the Engenius Cloud to anticipate problems before they occur and provide accurate recommendations for active performance improvement.

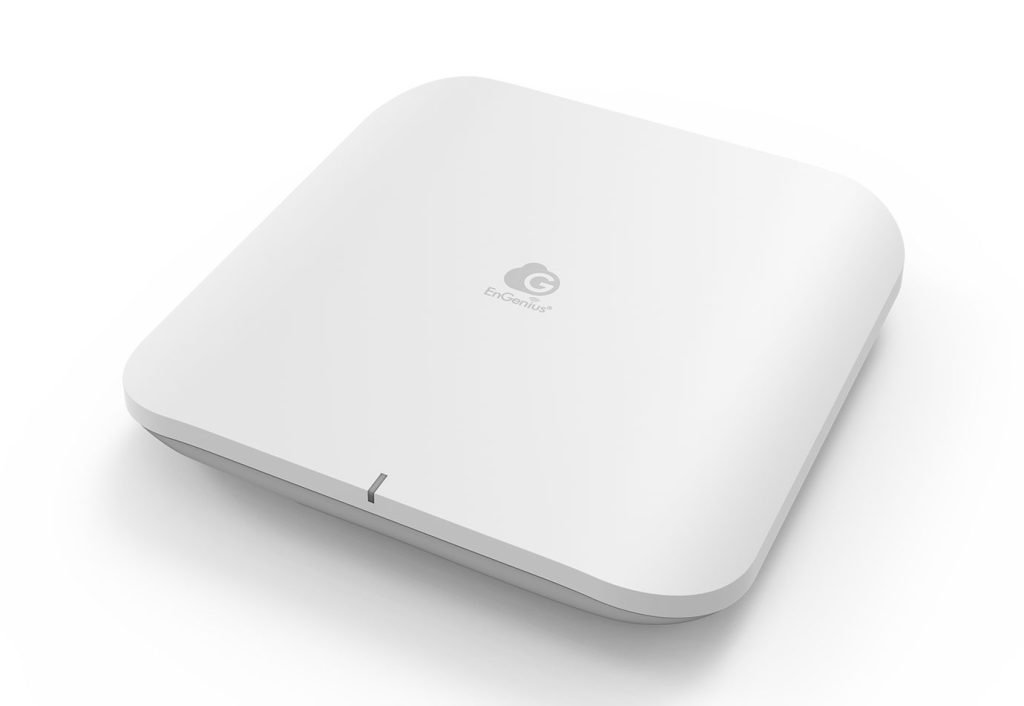

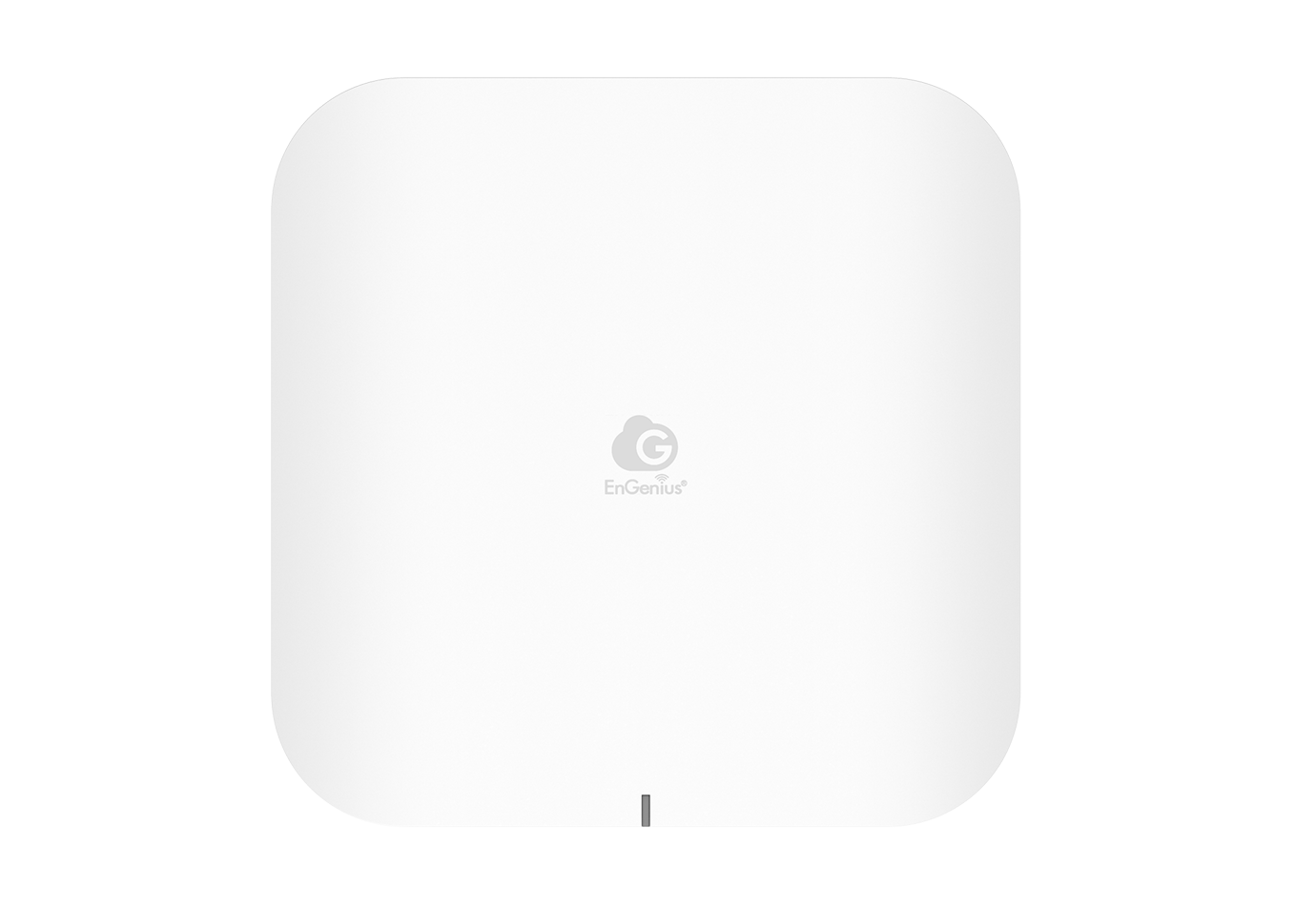

Engenius ECW526
three-band access point Engenius ECW526 with the support of the latest standard WiFi 7 is particularly suitable for use in business internal environments. Provides fast and reliable Wi-Fi coverage in bands 2.4 GHz, 5 GHz and 6 GHz, Bit speed

• Internal access point 802.11be (Wi-Fi 7)
• speeds up to 700 Mbps (2.4 GHz), 2400 Mbps (5 GHz), 5800 Mbps (6 GHz)
• MU-MIMO technology (2 × 2: 2)
• TX Beamforming optimizes signal, reception and reliability
• band steering, fast roaming
• Guest Wi-Fi, Captive Portal including Social Network Login or Vouchers
• AP, AP MESH and MESH
• 1x 10g Ethernet port
• Power supply 12 V DC or 802.3BT POE

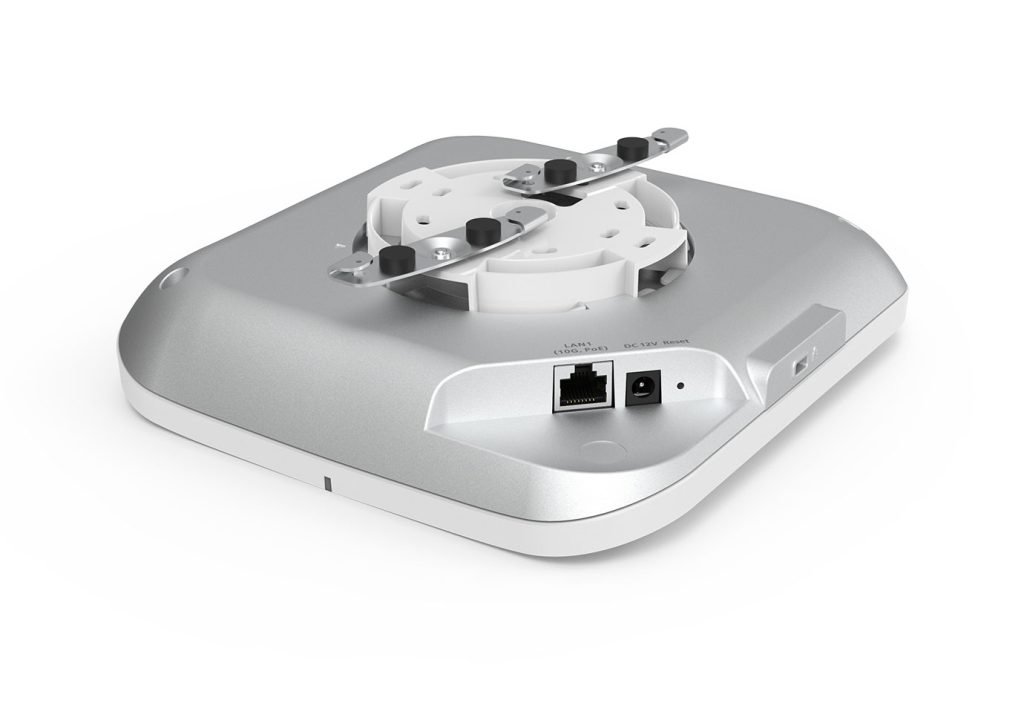

• mounting on the ceiling or wall
• AP settings with one click-just scan the QR code and assign to the cloud
• unlimited number of access points in the cloud-access from anywhere, anytime
• Managing and monitoring network via mobile app
• Using AP and cloud is without any other license or service charges

Engenius Cloud
Get to know the ease of construction and the high efficiency of network management-from deployment to monitoring and solving problems with the comprehensive solution of Engenius Cloud will help you simplify the whole process. The Engenius Cloud is based on cloud computing technology-robust and dynamic cloud infrastructure, which is fully scalable from the smallest projects to the deployment of thousands of AP and ready on AI, will help you work intelligently in your network using important analytical and visualization tools.

• easy management of multiple organizations and networks in one account, sort and filter individual networks
• Mass management AP and switches in one place
• Quick solution to graphical and visualization tools
• Clear view of each client's history on Timeline
• Information in real time Information about the status and performance of each individual AP and network as a whole
• Automatic network topology, built-in AP coverage view on maps
• Operation Analysis on 7.
• Captive portal with advanced features-Social network login, automated voucher printing option for temporary access, Radius support.
• Mobile application Engenius Cloud-full check over Switchi, access points and devices managed cloud, wherever you are.
• Possibility to remotely and centrally manage FW all devices, possibility to coordinate updates with planned maintenance
• One-CLICK registration of new AP via the web or mobile application

More Parameters:

name	value
Operational modes:	AP, AP MESH, MESH
Frequency range 2.4 GHz:	2400 MHz ~ 2482 MHz
Frequency range 5 GHz:	5150 MHz ~ 5250 MHz, 5250 MHz ~ 5350 MHz, 5470 MHz ~ 5725 MHz, 5725 MHz ~ 5850 MHz
Frequency range 6 GHz:	5925MHz ~ 7125MHz
Power transmitted:	to 25 dBm, TX Beamforming (TXBF)
Radio Chains/Spatial Stream:	2 × 2: 2
Max. throughput:	700 Mbps (2,4 GHz), 2900 Mbps (5 GHz), 5800 Mbps (6 GHz)
Maximum power consumption:	21 W
Operating temperature:	0 ° C ~ 40 ° C
Weight:	720 g
Dimensions (W x H x H):	190 x 190 x 39 mm

Package content:

• 1x ECW526
• 1x mounting kit on the T-round to the ceilings
• 1x mounting kit for installation on ceiling and wall
• 1x mounting accessories
• 1x fast user manual
