EnGenius ECW516L WiFi 7 Access Point 2x3x3 Cloud Controller

The EnGenius Cloud Series range of enterprise Wi-Fi access points and PoE switches provides flexible, scalable and reliable Wi-Fi connectivity for a wide range of applications. Whether you are looking for an AP to cover your offices or you need to provide ultra-fast Wi-Fi access in a large hotel or campus, Engenius cloud-managed access points meet the requirements for high data rates and throughput even for hundreds of connected clients.

Regardless of your current or planned network size, cloud-managed access points will meet your needs. You can use just a few APs or an unlimited number of access points in an unlimited number of networks in different places-regardless of their size, infrastructure or physical location.



Thanks to the simple one-click configuration of the AP, the entire network can be set up and operational in an extremely short time. Similarly, problem solving and traffic analysis are orders of magnitude more efficient with a cloud solution compared to a classic local controller-artificial intelligence (AI) enables the EnGenius Cloud system to predict problems before they occur and provide accurate recommendations for active performance improvement.

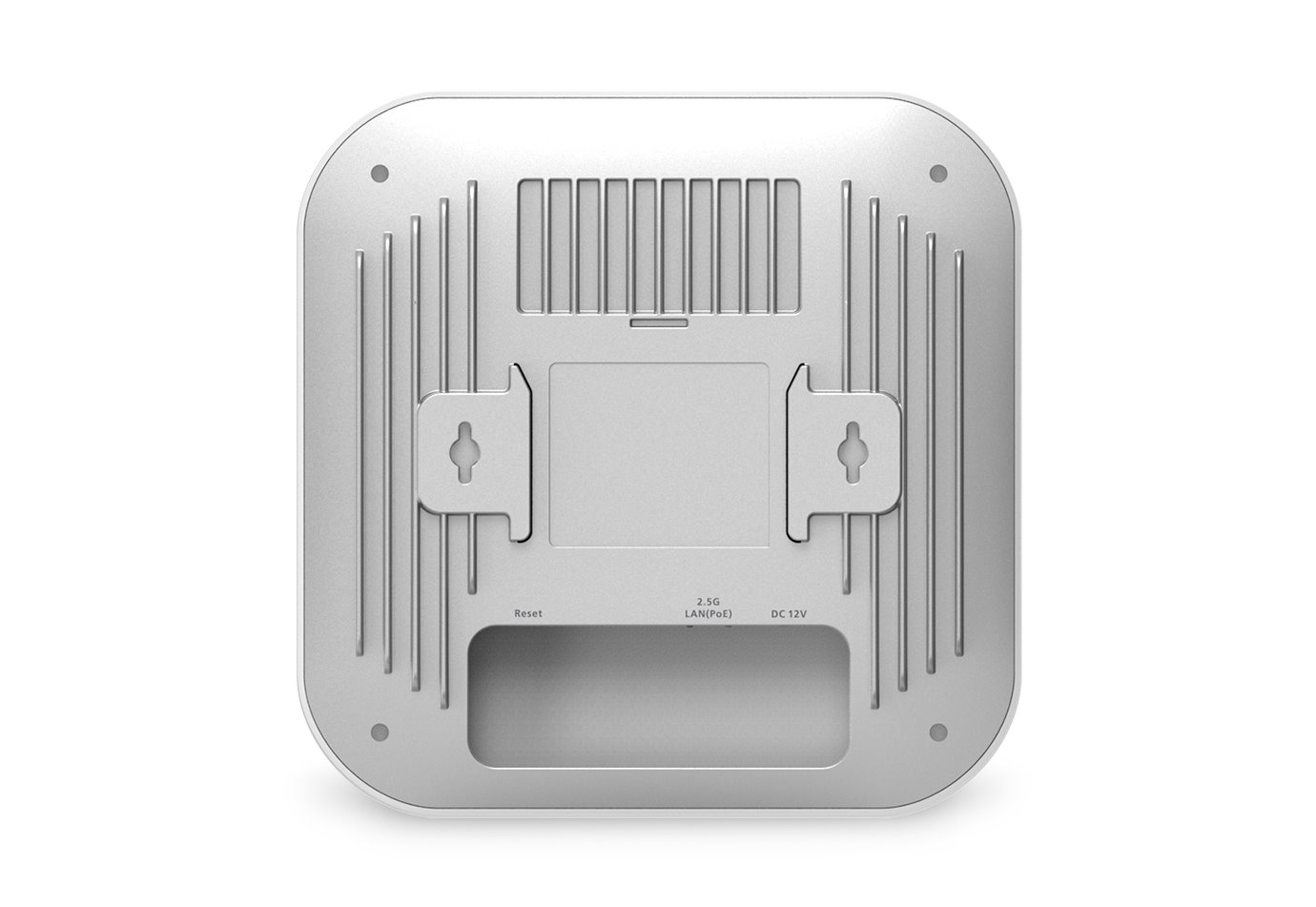

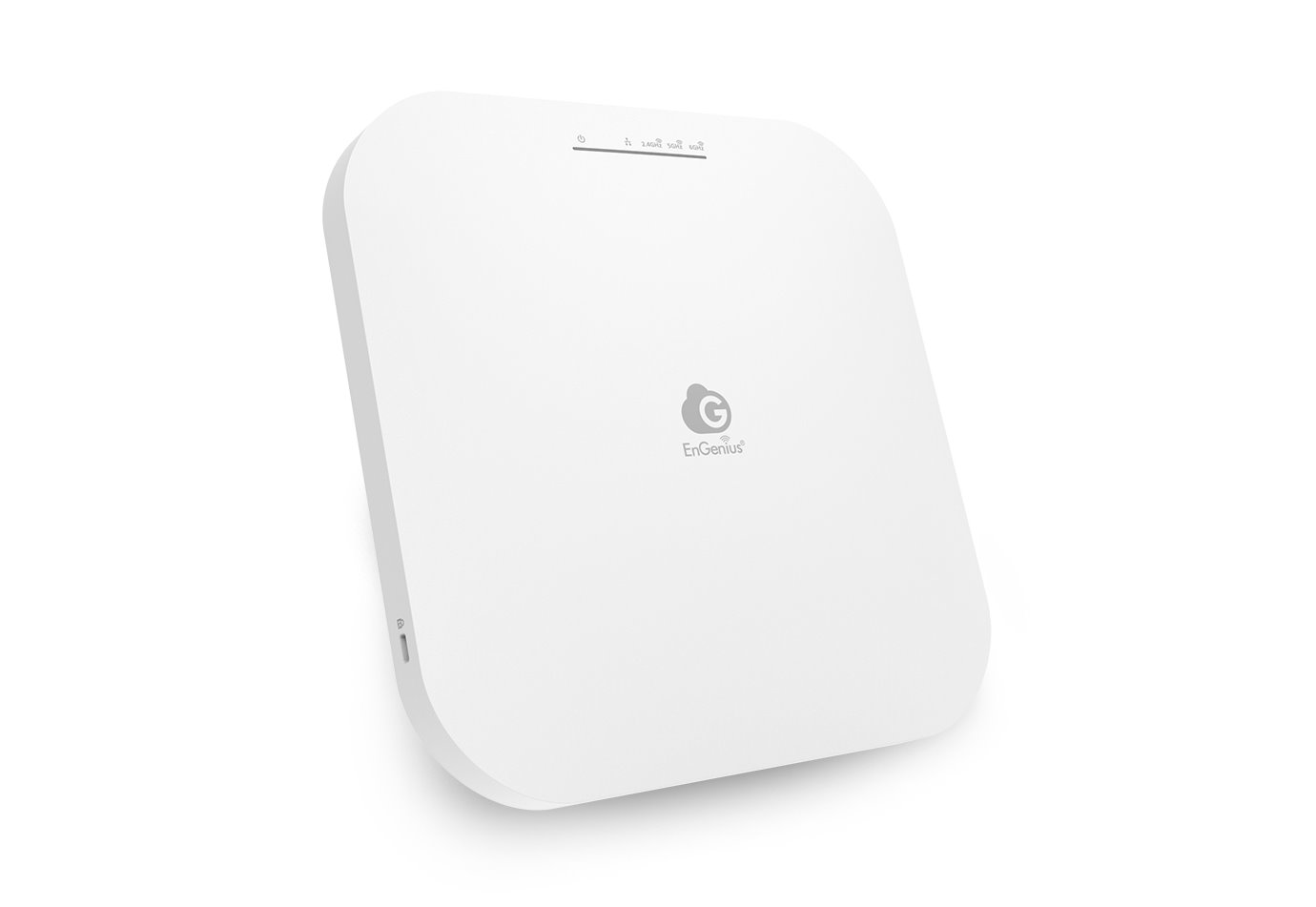

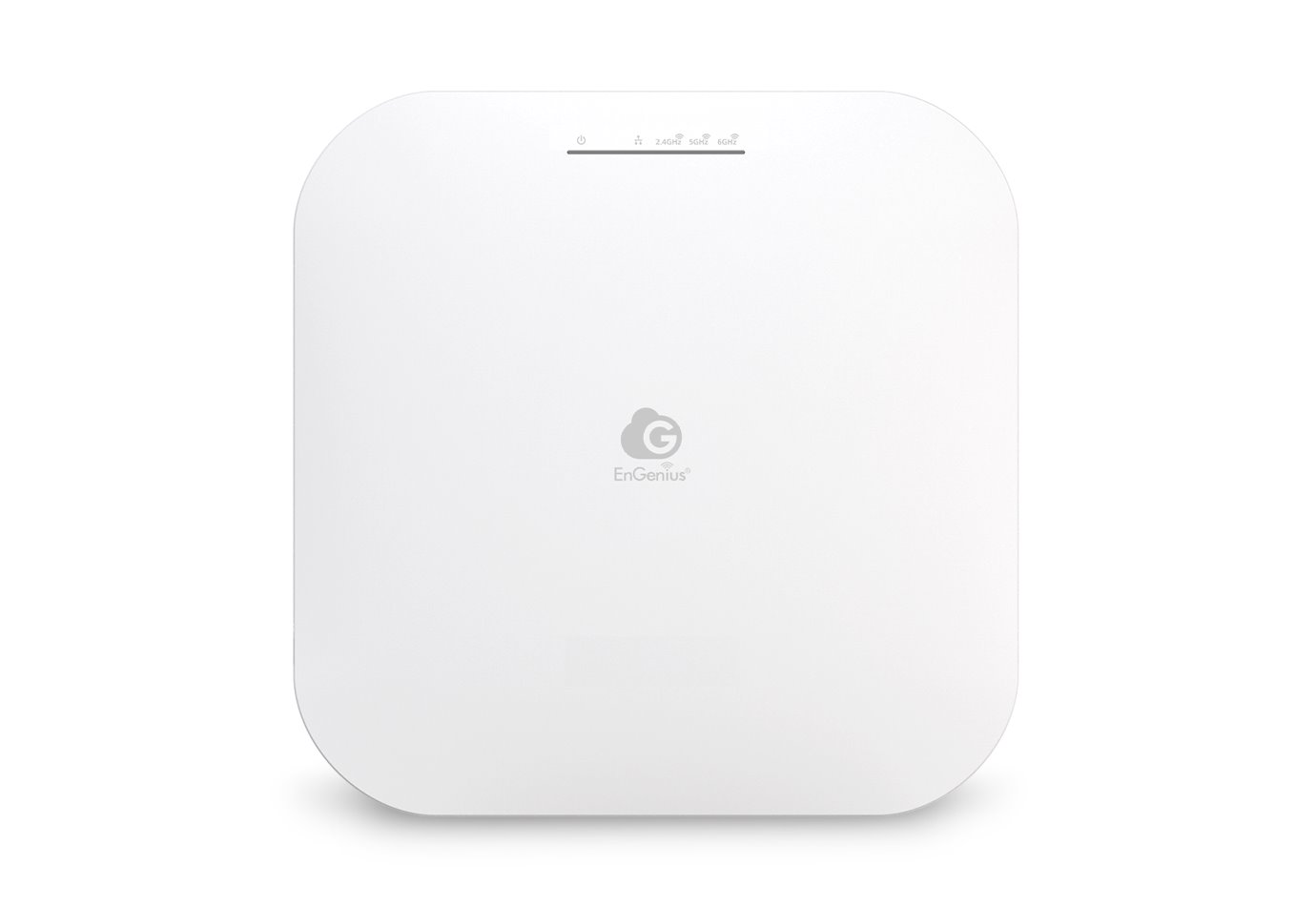

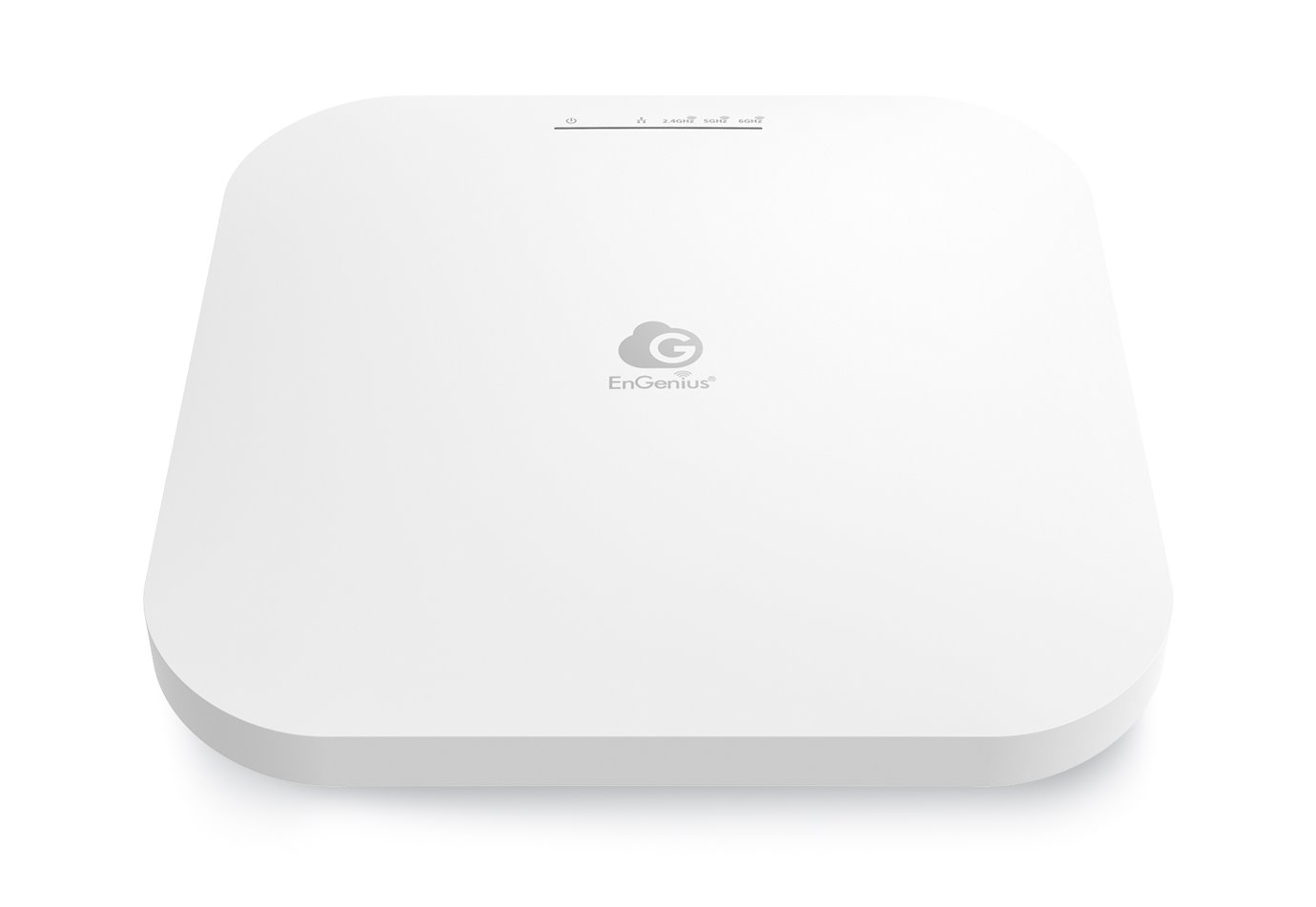

EnGenius ECW516L
The EnGenius ECW516L (Cloud7 2x3x3 Lite) tri-band access point is particularly suitable for use in corporate indoor environments. It provides fast and reliable Wi-Fi coverage in the 2.4, 5 and 6 GHz bands with support for the latest WiFi 7, transmission speed up to 13,700 Mbps, 2×3:3 MU-MIMO, TX Beamforming, patented Mesh technology.

• Indoor 802.11be access point (WiFi 7)
• Speeds up to 700 Mbps (2.4 GHz), 4300 Mbps (5 GHz) and 8700 Mbps (6 GHz)
• MU-MIMO technology (2×3:3)
• TX beamforming optimizes signal, reception and reliability
• Band steering, fast roaming
• Guest Wi-Fi, Captive portal including login via social networks or vouchers
• AP, AP mesh and Mesh modes
• 2.5Gigabit Ethernet PoE port
• Power supply 12 V DC or 802.3af PoE
• Ceiling or wall mounting
• One-click AP setup-just scan the QR code and assign to the cloud
• Unlimited number of access points in the Cloud-access from anywhere, anytime
• Network management and monitoring via mobile application
• Using AP and Cloud is free of any additional license or service fees



  EnGenius Cloud
  Experience the ease of construction and the high efficiency of network management-from deployment to monitoring and troubleshooting, EnGenius Cloud's comprehensive solution will help you simplify the entire process. EnGenius Cloud is built on the most advanced cloud computing technology-a robust and dynamic cloud solution infrastructure that is fully scalable from the smallest projects to the deployment of thousands of APs and ready for AI, helps you work intelligently in your network with important analytical and visualization tools.


• Easy management of multiple organizations and networks in one account, the ability to sort and filter individual networks
• Mass management of APs and switches in one place
• Quick troubleshooting with graphics and visualization tools
• A clear view of the history of each client on the Timeline
• Real-time information about the status and performance of each individual AP and the network as a whole
• Automatic creation of network topology, built-in display of AP coverage on map backgrounds
• Layer 7 traffic analysis-full control over applications, usage information.
• Captive portal with advanced functions-login via social networks, possibility of automated printing of vouchers for temporary access, Radius support.
• EnGenius Cloud mobile application-full control over switches, access points and devices managed by the cloud, wherever you are.
• The ability to remotely and centrally manage the FW of all devices, the ability to coordinate updates with scheduled maintenance
• One-click registration of new APs via the web or mobile application



  Wi-Fi standards:
• IEEE 802.11b/g/n/ax/be for 2.4 GHz
• IEEE 802.11a/n/ax/be for 5GHz
• IEEE 802.11a/n/ax/be for 6 GHz

  Antennas:
• Integrated Omni-Directional
• 2 x 2.4 GHz: 5 dBi
• 3 x 5 GHz: 5 dBi
• 3 x 6 GHz: 5 dBi

  Interface:
• 1x 10/100/1000/2500 BASE-T, RJ-45 Gigabit Ethernet Port
• 1x DC Jack
• 1x Reset Button

  Power supply:
• Power-over-Ethernet: 802.3af
• IEEE 802.11e Compliant Source
• 12V DC/1A Power Adapter

  Management:


• Multiple BSSIDs
• 8 SSIDs for 2.4 GHz and 5 GHz
• VLAN Tagging
• Support 802.1q SSID-to-VLAN Tagging
• Cross-Band VLAN Pass-Through
• Management VLAN
• Spanning Tree
• Supports 802.1d Spanning Tree Protocol
• QoS (Quality of Service)
• IEEE 802.11e Standard
• WMM
• SNMP v1, v2c

  Security:


• WPA/WPA2 Enterprise (WPA-EAP Using TKIP or AES)/WPA3
• Hide SSID in Beacons
• MAC Address Filtering, Up to 32 MACs per SSID
• Wireless STA (Client) Connected List
• Client Isolation


  Discover the power of EnGenius Cloud




  Other parameters:

  Name	Value
  Operating Modes:	AP, AP Mesh, Mesh
  Frequency range 2.4 GHz:	2400MHz~2482MHz
  5 GHz frequency range:	5150 MHz ~ 5250 MHz, 5250 MHz ~ 5350 MHz, 5470 MHz ~ 5725 MHz, 5725 MHz ~ 5850 MHz
  6GHz frequency range:	5925-7125MHz
  Transmitted Power:	up to 22 dBm, Tx Beamforming (TxBF)
  Radio Chains/Spatial Streams:	2×3:3
  Max. throughput:	700 Mbps (2.4 GHz), 4300 Mbps (5 GHz) and 8700 Mbps (6 GHz)
  Maximum power:	20W
  Operating temperature:	0°C~40°C
  Weight:	382g
  Dimensions (w x h x d):	205 x 205 x 33mm



  Package contents:
• 1x ECW516L
• 1x Mounting kit on T-rail for suspended ceilings
• 1x Mounting kit for ceiling and wall installation
• 1x Mounting accessories
• 1x Quick User Manual
