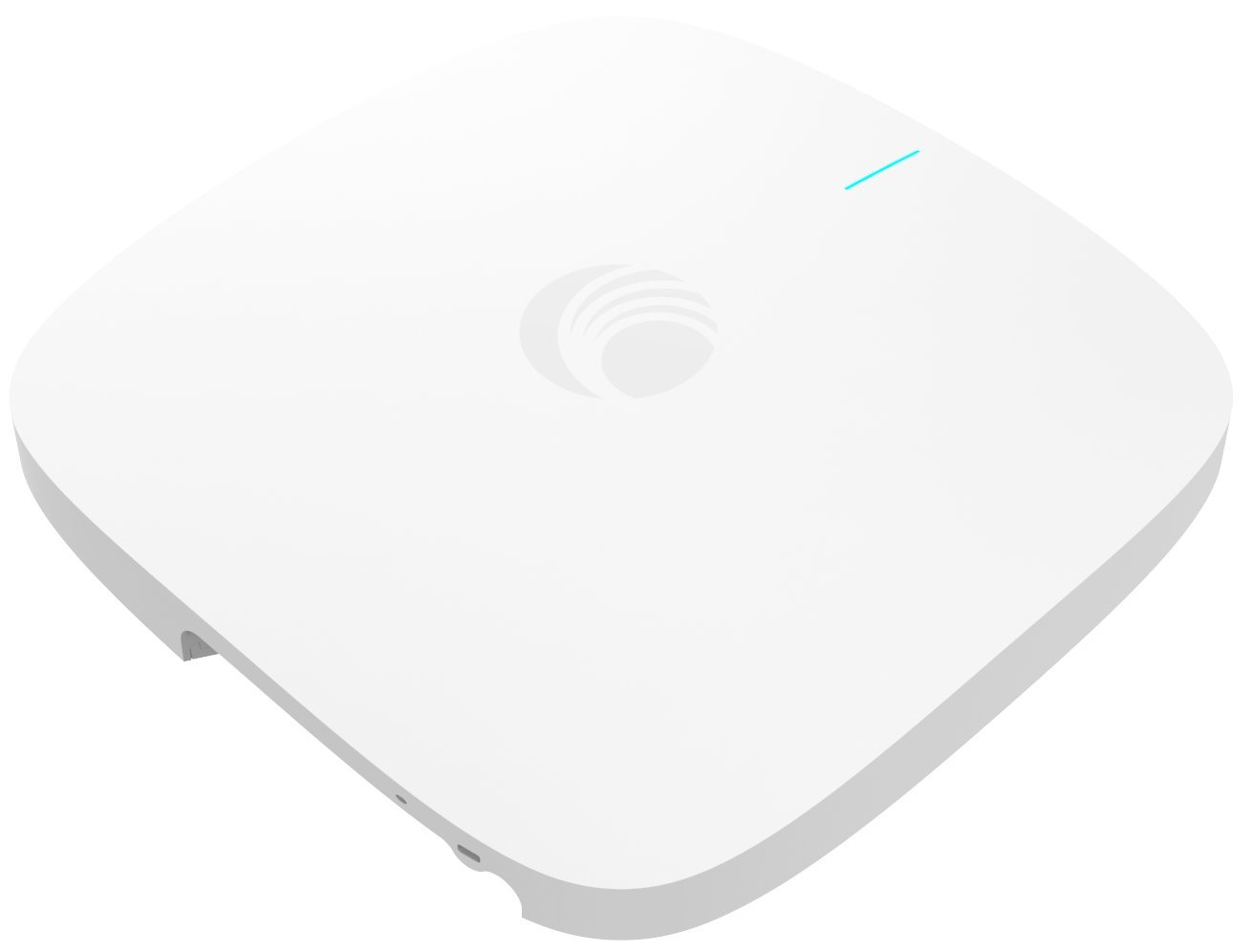

Cambium XE5-8, WiFi 6E access point, 2x SDR to 8x8 MIMO, 5G Eth port

Cambium Networks XE5-8 is a radio Wi-Fi 6E Access point (AP), which contains two software-defined radios (SDR) in the 5/6 GHz band, two switchable radios in 5 GHz and one classic in the 2.4 GHz band. SDR radios allow SW configuration and switching between 5 GHz bands and 6 GHz. For switchable radius it is possible to use them as one 8x8 outside the radio or two called 4x4 outside. In addition, the AP contains Ble 4.1 module . This makes it possible to find the ideal configuration even for the most demanding environment. The Wi-Fi 6E technology provides higher network speed and allows multiple connected devices at higher connection quality. It is also fully backward compatible with existing Wi-Fi technology.

The XE5-8 model supports 4096 Qam and the width of the 160 MHz channel, which achieves overall transmittance in combination of all radio up to 16 Gbps . At once it is possible to connect up to 2500 clients and all modern features and standards are supported.

• TRIBAND, up to 8x8: 8 Mu-Mimo
• Ethernet ports: 2x 5g RJ45
• Ble 4.1
• total data speed 16 Gbps
• Max 2500 clients
• security WPA3, WPA-TKIP, WPA2 AES, 802.1x, 802.11W PMF
• Integrated omnidirectional antenna (4/5/5 dBi)
• Standards Support IEEE 802.11 A/AC/AX/B/D/E/G/H/I/K/N/R/U/V/W/X
• tunneling (L2TP/L2ogre/PPPOE),
• EasyPass with Microsoft Azure and Google G suite integration
• cloud and local administration
• Power consumption max 59W, 802.3BT POE
• operating temperature 0 ° C to +50 ° C
• 5 Year Limited Lifefime Warranty

With an advanced controller (cloud or on-premise) CNmaestro , central management can be used for all Cambium Networks elements in the network to make the entire deployment and maintenance process more efficient. The basic variant of CNmaestro is free of charge and does not require any additional license fees.
