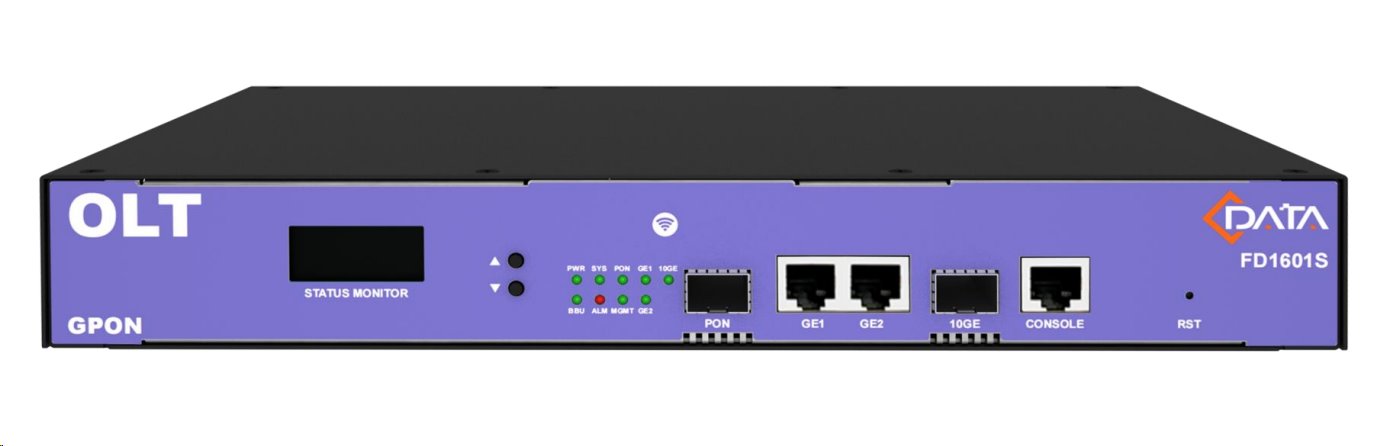

C-DATA FD1601S-B2, 1-port GPON OLT

Name: C-DATA FD1601S-B2, 1-port GPON OLT
Brand: C-DATA
SKU: 76842
Price: 294.51 EUR
Availability: InStock

C-DATA FD1601S-B2 is a compact and powerful mini gpon alt unit , designed for smaller to medium FTTH deployment with 128 connected onus on a single PON port. It offers 1 × Gpon Port , 2 × Gigabit Ethernet, 1 × SFP+ Conclink and is also equipped with in...More information

Producer

C-DATA

Code

00075223

Warranty

24 Month

Availability

Availability in stores

Order

Your price exc. VAT

243.39 EUR exc. VAT

VAT

21%

Your price inc. VAT

294.51 EUR inc. VAT

Ask for a better price

Description

C-DATA FD1601S-B2 is a compact and powerful mini gpon alt unit , designed for smaller to medium FTTH deployment with 128 connected onus on a single PON port. It offers 1 × Gpon Port , 2 × Gigabit Ethernet, 1 × SFP+ Conclink and is also equipped with integrated Wi-Fi that allows wireless connectivity for local management or network access. The device supports ITU-T G.984/G.988 standards, allows transfer rates up to 2.5 GB/s downstream and 1.25 GB/s upstream and handle distances up to 20 km. Thanks to the built-in supervisory CMS system , central management, monitoring and configuration of the entire network can be performed, which makes operation and maintenance easier. Thanks to the possibilities of managing, CLI, Telnet, SSH or SNMP, the device is easy to configure and suitable for ISPs, business networks and smaller providers. Its main advantages consist of simple deployment, wide compatibility with onus, stable performance, extended management options and compact design that saves space in the seagull.

ITU-T G.984/G.988 (Gon) Support
port equipment:
- 1 × Gon Port (SFP slot) with a splitting ratio up to 1: 128
- 2 × 10/100/1000 Mbps gigabit appeals
- 1 × SFP+ uplink (up to 10 GB/s)
integrated Wi-Fi -the possibility of wireless connectivity for local management and configuration.
Survey CMS system -support for central management, remote monitoring and onus configuration.
transfer speed up to 2.5 GB/s downstream and 1.25 GB/s upstream with a range of up to 20 km.
Web, CLI, Telnet, SSH, SNMP and MQTT support for flexible remote management.
temperature range-15 ° C to 50 ° C, humidity 5-90 #i6per #.
Power supply: AC 100–240 V/DC 12 V

Parameters

Ethernet parameters
Consumption	20
Management	Yes
Power Supply	AC
Properties	IGMP-Snooping, CTC, Port protect, QoS, VLAN
Gigabit LAN	yes
Number od RJ45 ports	2
Number of SFP+ (10G) ports	1
Optical parameters
Number of GPON Ports	1
Optical connector type	SC
Počet PON portů	1
PON standard	GPON
Physical parameters
Depth (mm)	192
Design	Standalone
Height (mm)	40
Operating Temperature	-10°až +50°C
Weight (kg)	1.5
Width (mm)	290
