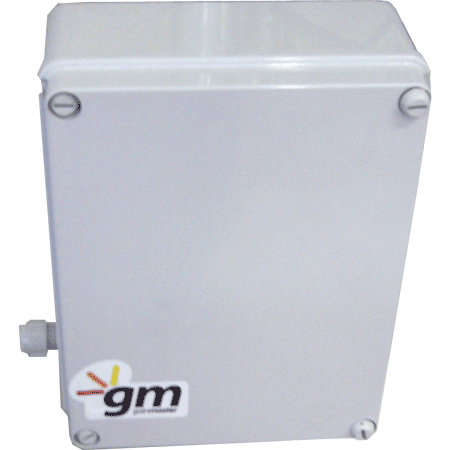

Antenna KA-17N for the 5GHz band including a large installation box

KA-17N: well adapted antenna for 5GZ band operating in the range of 5.150-5.875. VSWR is less than 1.5 in its entirety. In the 5,470-5,725 band, VSWR <1,25! The antenna is integrated into a large box, which is also designed to install a whole range of devices such as microtics, AP, accessories

The antenna can be mounted on a mast to a diameter of 60 mm. The antenna is supplied with a solid holder, which ensures the stability of the antenna.
The grooves on the holder are intended only for horizontal assembly. If the antenna is inclined, it must be mounted on the opposite side of the bracket, where it is possible to position the antenna as needed

Each Antenna is controlled and measured by professional site analyzer Bird Sa-6000

properties:

• Frequency range: 5,150-5,875 GHz
• Imprendance: 50 Ohm
• Connector: UFL
• Polarization: H/V according to installation
• PSV: <1,25
• radiation angle: 20 ° x 20 °
• profit: 17 dBi
• Weight: 1200g
• Dimensions: 25 x 20 x 10 vxšxh (cm)
• Covering: IP56
• hole with a bushing on the side
