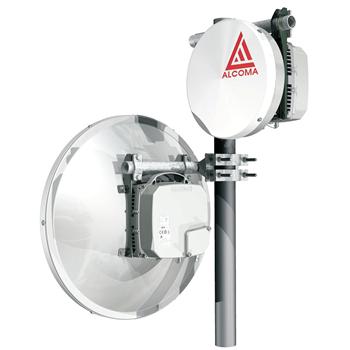

Alcoma AL24 MP165, 24 GHz, 165 Mbps, incl. 65 cm antennas

ALCOMA AL24 MP165 165 Mbit represents a compact, simple and low-cost link for short-distance data transmission. The link operates in a free 24 GHz band with a transmission capacity of 77 Mbit/s. In the 24 GHz free band, it operates under General Authorization VO-R/10/03.2007-4 TU.



The entire joint is built into an aluminum alloy die casting enclosure that forms a compact unit with the antenna. Compatibility with ALCOMA type ME, MPR and MPS parabola is ensured.



ODU ONLY-the link only contains internal protected terminal blocks (without the need to use IDU). The protected terminal box can be supplied in a single-socket version with DIN rail mount or 19"rack for connection and 3 users. The internal terminal block is connected to S-STP Cat.7 structured cabling up to 100 m (forming an Ethernet segment) Integrated High Performance Antenna Systems are available with diameters of 0.35/0.65/0.9/1.2 m.



The device has freely switchable transmission capacities and bandwidth and is fully fullband. The unit is equipped with FEC forward correction and automatic ATPC power transmission control. The bandwidth is up to 28 MHz.



AL24MP165 supports adaptive switching of transmission capacity. Switching works on the principle of monitoring the signal level, and in the event of increased weather attenuation, it reduces the degree of modulation to avoid decaying.



The ALCOMA ASD Advanced Supervision Software, with the ability to monitor unlimited number of links, simplifies network management. Supervision supports SNMP and MIB messaging.



Jumping length 165 Mbit in free 24 GHz band with parabola 65-65 cm approx. 2 km in quality class of coordinated connections. Jump length 100 Mbit/s connection version   about 3.5 km! We offer the possibility of complete installation including additional services according to the customer's request- do not hesitate to contact us. < /p>

Charterer:

• Frequency band 24.0-24.25 GHz
• Power 20 dBm EIRP
• Transfer capacity up to 165 Mbit/s
• Optional Modulation 16, 32, 64, and 128 QAM
• Bandwidth 7, 14, and 28 MHz
• 2 Channels Eth 10Base-T/100Base-TX
• Automatic ATPC Performance Control
• Spectrum Analyzer
• Link ODU ONLY
• Receiver's Threshold Sensitivity > -80/-75/-67 dBm
• Forward error correction FEC/LI >
• Protected Terminal Block
• Radio parameters: EN 301751, EN 300198, EN 301126
• Electromagnetic Compatibility: ETSI EN 300385, EN 61000, EN 55022
• Safety: EN 60950
• Antenna systems (optional): 35/65/90/120 cm ; ETSI EN 301833
• Power supply: 48V
• Channels: 1) Line 3 + Mgmt channel with Eth 10/100 interface for user and supervisory data 2) ODU-RS232 connector for direct connection of the <

  S for 6 months free of charge !!!

  Manufacturer Warranty: 48 months, of which 12 months full warranty and 36 months free service *

  * The free service means that the customer pays only the work technique

  Leasing can also be purchased for up to 5 years. We also offer the possibility of financing the installment on installments without raising-in the form of 6 monthly installments. >



  Part of the connection: 2 pcs 65 cm antennas, 2 pcs protected terminal block, 2 ODU MP165
