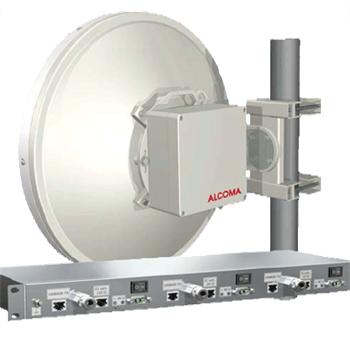

ALCOMA AL10D MP90, 10 GHz, 88 Mbit/s

Wireless PtP connection for 10 GHz band. Cost of connection using 35 cm diameter antennas and 88 Mbit/s transmission rate.

ACTION CONNECTION-PRICE INCLUDES:

Bridging
Extended 48-month
SLA for 6 months free

For calculation and design of the connection please contact us. "Demand form" here

Price when using more profitable antennas:

• Diameter 65 cm: 136 000,-without VAT
• Diameter 90 cm: 142 000,-without VAT
• Diameter 1.2 m: 161 000,-  without VAT

You can have this link on your network for $ 2,934/month

Antenna systems can be arbitrarily combined to achieve the optimal parameters of the resultant link. For calculation and design of the connection please contact us-in the section files you can use the inquiry form.

This link can also be delivered at 44 Mbit/s or 66 Mbit/s at the same price.

AL10D MP90 for 10 GHz band
at 3dBm. The range is given in km for the 20 dB reserve and BER = 10/-6

65 Mbit/s baud rate

• Diameter 35 cm: 0.8 km
• Average 65 cm: 3.5 km
• Diameter 65 cm + 120 cm (90cm + 90cm): 7 km
• Diameter 120 cm: 14 km

Main Features:

• Frequency band: 10 GHz
• Modulation: 16QAM
• Automatic output ATPC output control
• Fully software configuration
• Sturdy and durable construction of both the outdoor unit and the antenna
• High operational reliability and climate resistance
• SQL Database Management

External Unit (ODU)

• The entire joint is only built into external units
• The simply removable ODU is integrated with the antenna in one unit or can be mounted separately and connected by a flexible waveguide
• The ODU and the intrinsically protected/unprotected terminal block are connected by structured cabling S-STP Cat.7 to a length of 100 m
• Frequency control panel with PC frequency setting
• Switching capacity and bandwidth from PC
• Output Stream Settings from PC

ALCOMA High Performance Antenna Systems:

• Diameter: 0.35 m-Gain: 28 dB
• Diameter: 0.65 m-Gain: 34 dB
• Diameter: 0.9 m-Gain: 37 dB
• Diameter: 1.2 m-Gain: 40 dB

Indoor protected terminal box

• 10/100 Mbps Ethernet User Interface and 48V Supply Voltage
• Integrated overvoltage protection
• 19"height rack 1U for 1-3 external units

User Interfaces

• Fast Ethernet

Fast Ethernet

• towards the user 1 Fast Ethernet Switcher
• Support Auto negotiation or manual setup
• Flow control
• Auto MDIX
• VLAN support of up to 1536-byte packets

Remote Watch

• The Surveillance System enables real-time surveillance and network management with any topology of up to 1000 stations
• SQL Database Management
• The IP-STACK containing the SNMP protocol is superstructure over its own surveillance system and allows heterogeneous network monitoring
