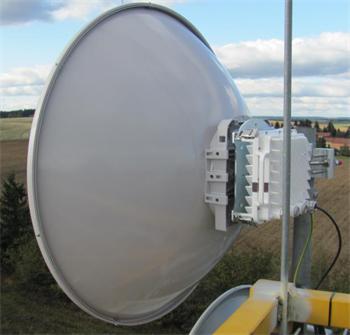

Advertisement: Antenna COMH ARKIVATOR 11GHz, 99 cm

Precise directional parabolic antenna Arkivator 10 GHz with a diameter of 99 cm with a gain of 38.2 dBi with plastic radome designed for wireless connections.
The antenna meets the standard ETSI EN 302 217 Class 3 and the connections made with this antenna VO meet the 10 GHz band.
The antenna can be used for 11 GHz band.
The shape of the antenna is designed for use in adverse climatic conditions-a variety of relatively convex to reduce the possibility of ice formation and reduce wind resistance.
The antenna is a good, economical choice in cases where the customer needs an antenna larger than 90 cm in height and 120 cm dish is oversized solution.Working frequencies range:\r
10.125 to 11.70 GHz\r\r\r
Technical parameters:\r
Polarization: Vertical or horizontal (linear) by mounting the\r
Gain: 38.2 dBi/Low-band, 39.1 dBi/Mid-band, 39.4 dBi/High-band\r
H angle: 2.1 °\r
The angle of 2.1 °\r
F/B Ratio: 65 db\r
VSWR: 1.43: 1 15 db\r
Cross-Polar Discrimination: 30 db\r
Tilt: mechanical, azimuth and elevation ± 15 °\r
Cover: Radom, UV-resistant PC\r
Standards: EN 302 217 Class 3\r\r\r
Input:\r
rectangular waveguide UBR120\r\r\r
Working conditions:Temperature:-40 ° to + 55 ° C\r
Humidity: 15-100% (non-condensing)\r
Wind load: 180 km/h\r
Ice load: 25 mm (900 kg/m2)\r\r\r
Dimensions:\r
diameter 99 cm (antenna), depth (incl. holder) 600 mm\r
Shipping Dimensions: 107 x 104 x 40 cm\r\r\r
Weight:\r
19 kg
