ADEL System FLEX28048A, Industrial power supply, 48V/7.5A, 345W

A number of industrial DC power sources Flex from traditional Italian manufacturer Adel System brings the best technologies to the category of affordable sources. The Flex28048A is an AC/DC source with an input voltage of 115-230 V and a DC 48 V/7.5 and output, ie with a power input up to 345 W .

The output voltage can be controlled in the range of 41 to 55 V, the source can withstand up to 50# i6per# overload of the output without disconnecting the load . Against short circuit is then protected by one of 3 optional methods: 1) Hiccup Mode 2) Continuous Out Mode 3) Manual Reset.

Wide working temperature range (- 25 ° C to 70 ° C ), compact size including DIN rail holder and above standard 3 years warranty are a prerequisite for reliable operation at all times.

key features:

• input: 115-230 VAC
• Output: 48 VDC/7.5 and/345 W
• Efficiency: More than 91#i6per#
• Overload option up to 50 #i6per #
• Output relay (power signal)
• Three types of short-circuit protection: 1) hiccup mode 2) Continuous Out Mode 3) Manual Reset

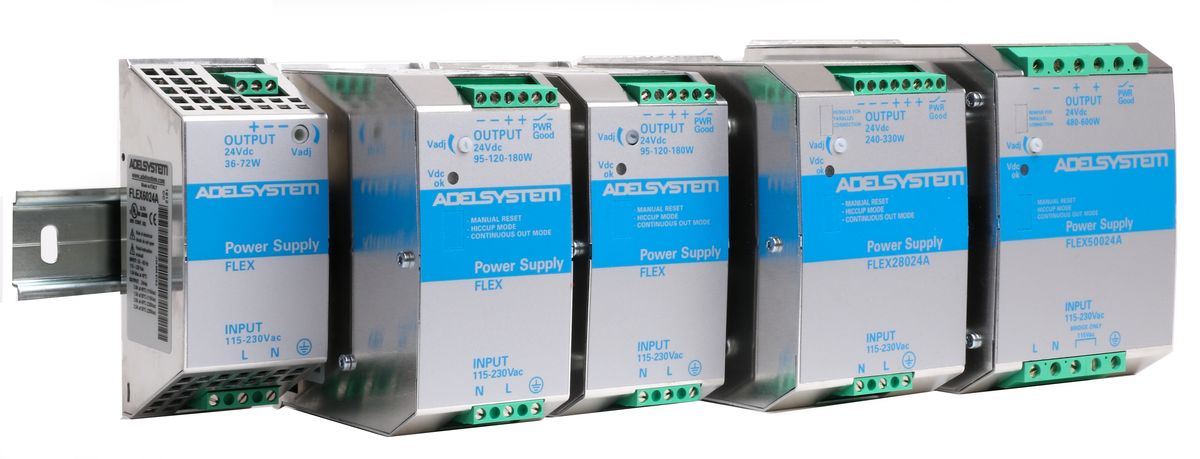

• compact size + assembly on DIN
• 3 years warranty
