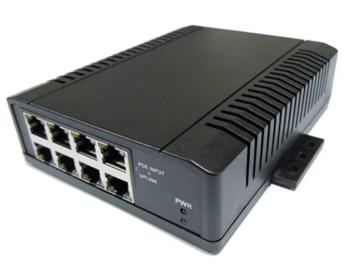

8 Port High Power POE 10/100BASET switch. 802.3af Compliant, With 48V 150W power supply

The TP-SW8 Power Over Ethernet 802.3af (PoE) 10/100Mb switch offered by Tycon Power Systems is a fully
automatic high speed 8 port Ethernet switch. The -NC version is a non compliant model for devices which are not
802.3af compliant. On the -NC version the PoE output voltage = the input voltage so it is
universal in its application. The DC input power range can be from 12V to 57V. The units
can also be powered over POE to Port 8.
Both models supply power to the remote device on the unused Ethernet pins 4,5(V+) and
7,8(V-). The Ethernet spec supports distances up to 100m (328 feet) between the PoE
switch and the remote device.

Features
* High Power 10/100Mb Passive PoE 8 Port Switch
* Remotely Power Equipment thru CAT5 Cable up to 100m
* Extend Ethernet and POE up to 200m
* Up to 2A per Port
* Automatic MDI/MDI-X Crossover
* Automatic Speed and Duplex Sensing
* 2K Self Learning MAC Address Table
* Compact Size
* High Temperature Operation Applications
* Wireless Access Points and Client Devices
* IP Phone and Security Camera Systems
* Power multiple devices from 1 data cable
